Our team supports die cast badge programs from early design review through full scale production. Material selection, tooling strategy, finishing options, and attachment methods are evaluated together to align with the intended application environment.
High Pressure Die Casting for Repeatable Production Programs
High pressure die casting enables the production of complex metal components with exceptional consistency, surface definition, and dimensional control. It is widely used across industries for structural parts, enclosures, and select branded elements such as badges where precision and repeatability are critical. Designed for long term production programs, the process supports scale without compromising quality.
High pressure die casting, engineered for repeatable output and controlled production at scale
PROCESS OVERVIEW
What Is Die Casting?
Die casting is a high pressure manufacturing process where molten metal is injected into hardened steel tooling to produce precise, repeatable components with controlled geometry and surface definition.
The process is built for production environments where dimensional accuracy, surface consistency, and repeatable output are critical to long term performance.
Consistency is engineered into the tool, not inspected after the fact.
Complex Geometry Capability
Fine detail and sharp feature definition across intricate cast designs.
Dimensional Consistency
Controlled tolerances maintained across repeat production runs.
Surface Efficiency
Smooth finishes that reduce secondary machining and downstream processing.
Optimized for high volume production with consistent output.
Die Casting Workflow From Tooling to Finished Production
A controlled, repeatable manufacturing process engineered for precision and long-term OEM programs.
01
Design and Engineering Review
Badge geometry, wall thickness, draft angles, and mounting features are reviewed for manufacturability, performance & tooling efficiency.
02
Tooling Development
Precision steel tooling is manufactured to control part geometry, surface detail, and dimensional repeatability across production runs.
03
Zinc Alloy Injection
Molten zinc alloy is injected into the tool under high pressure to fully form all raised, recessed, and textured features.
04
Cooling and Ejection
Parts cool rapidly within the mold and are ejected with consistent shape, density, and structural integrity.
05
Secondary Operations
Trimming, polishing, plating, painting, or coating are applied based on aesthetic, branding, and durability requirements.
06
Assembly and Attachment
Adhesives, studs, clips, or mechanical fasteners are added as required for final installation or OEM integration.
Why Die Casting Is Used in Production
Die casting is selected in production environments where precision, repeatability, and throughput must be built into the process from the start. It enables consistent output across high volume programs with minimal variation between parts.
High Precision
- Tight tolerance control across repeat production runs
- Repeatable geometry with minimal part to part variation
- Consistent dimensional accuracy across high volumes
Production Efficiency
- Fast cycle times measured in seconds per part
- Scalable for sustained high volume manufacturing
- Reduced secondary machining through near net shape forming
Design Flexibility
- Thin wall capability without compromising structural integrity
- Complex geometries produced in a single operation
- Integrated features that reduce secondary assembly requirements
Die casting aligns process capability with production scale, delivering consistent results where repeatability and efficiency are critical.
Common Materials in Die Casting
Material selection directly affects geometry capability, surface definition, durability, and production efficiency. The optimal alloy depends on part function, required finish, and long term production objectives.
Zinc Alloy
Badges, nameplates, and precision components requiring fine detail, sharp feature definition, and consistent surface appearance at production scale
Excellent dimensional stability with tight tolerance control. Supports intricate geometry and smooth surface finishes suitable for plating, painting, and decorative coatings. Lower processing temperature contributes to consistent tooling performance across long production runs
Aluminum
Structural components and larger parts where weight reduction, strength, and corrosion resistance are required
Lightweight with strong mechanical properties and good environmental resistance. Suitable for larger geometries and high volume production where consistent structural performance is critical
Magnesium
Ultra lightweight components where minimizing mass is a primary design requirement
Very low density with high strength to weight ratio. Enables thin wall sections and complex forms while maintaining structural efficiency
Copper Based Alloys
Specialized components and premium applications requiring distinct surface characteristics or enhanced material properties
Higher strength and wear resistance in select environments. Provides unique surface appearance and performance characteristics for niche or decorative applications
Design Considerations for Die Casting
Design decisions at the geometry and tooling level directly determine part quality, dimensional consistency, and long term production performance. These factors are engineered into the tooling phase to control how material flows, fills, and solidifies under pressure.
Variation is prevented through design, not corrected after production.
DESIGN PARAMETERS
- Geometry: wall thickness, draft angles, radii
- Tooling and flow: gates, runners, venting strategy
- Thermal control: cooling channel layout and solidification
- Production constraints: cycle time, tooling life, volume requirements
- Material selection: alloy choice based on strength, flow characteristics, and surface finish requirements
These parameters are defined during tooling to ensure stable process conditions and repeatable output across production runs.
Die Cast Badges Compared to Other Manufacturing Methods
Die casting is often selected over stamping, machining, or injection molding when a project requires a combination of dimensional depth, structural durability, and a premium metallic appearance.
Compared to stamped metal badges, die cast badges provide greater three dimensional detail and controlled surface depth. Compared to machined components, die casting offers significantly lower per unit cost at production volumes while maintaining consistent geometry. Compared to plastic injection molding, zinc alloy die casting delivers superior weight, rigidity, and long term durability with true metal finish options.
This makes die casting especially effective for OEM branding and identification applications where both visual impact and service life are critical.
vs. Stamped Metal
Greater dimensional depth and controlled surface detail
vs. Machined Components
Lower per unit cost at volume with consistent geometry
vs. Injection Molding
Superior weight, rigidity, and long term durability
When Die Casting Is Not the Optimal Process
Die casting offers strong repeatability, dimensional depth, and production efficiency, but it is not the ideal solution for every part or program. For both die cast components and badges, the right process depends on geometry, required volume, surface expectations, alloy selection, and total program objectives.
- Very low volume programs may not justify the process
- Some geometries are better suited to other manufacturing methods
- Surface finish requirements may still require secondary operations
- Alloy and process selection affect final performance
- Larger parts or oversized formats may become less efficient
- Dimensional control is strong, but design discipline is still required
Die casting performs best when the part, tooling, material, and production volume are aligned from the beginning.
Why Die Casting Is Ideal for Badges and Emblems

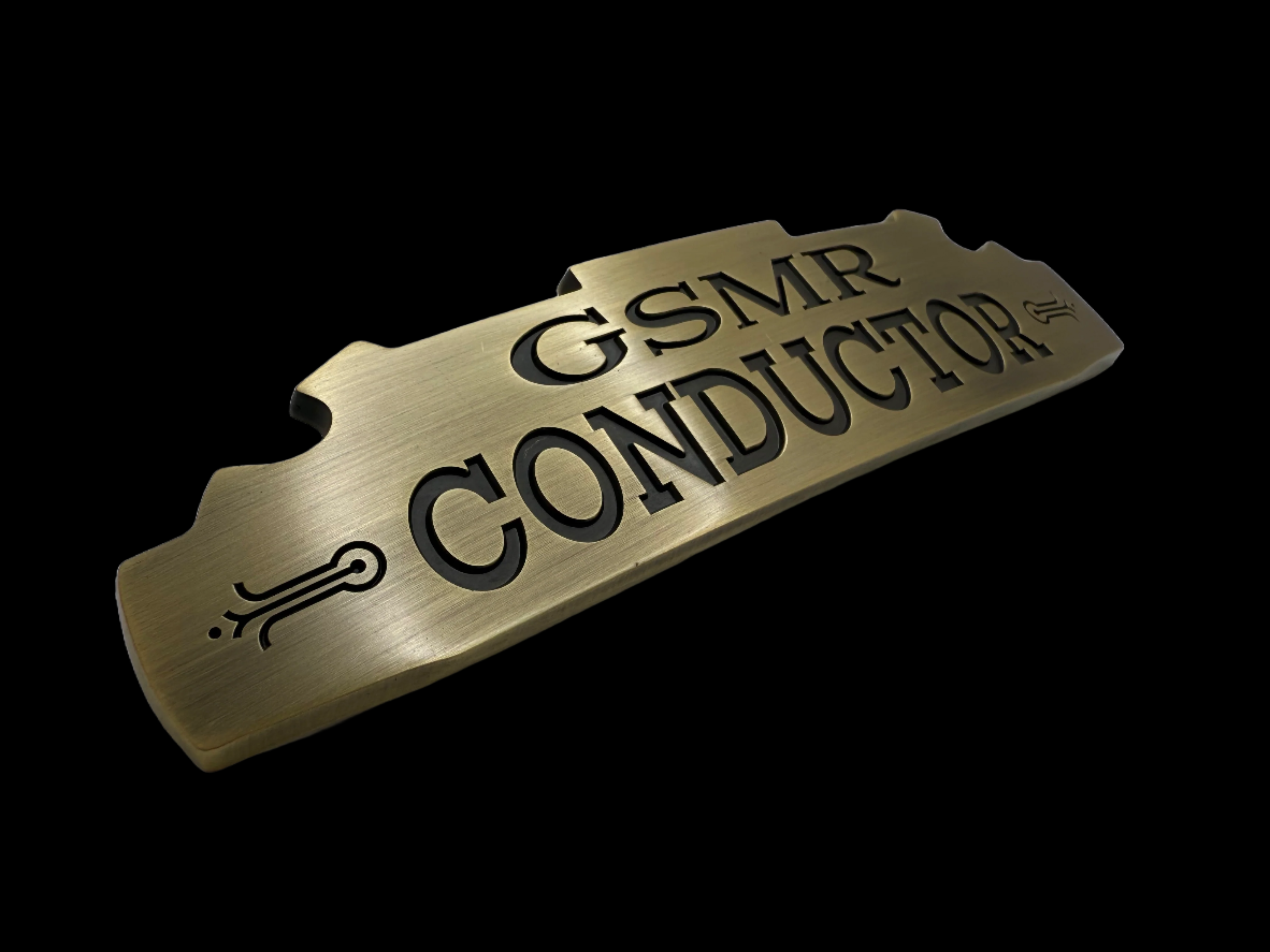

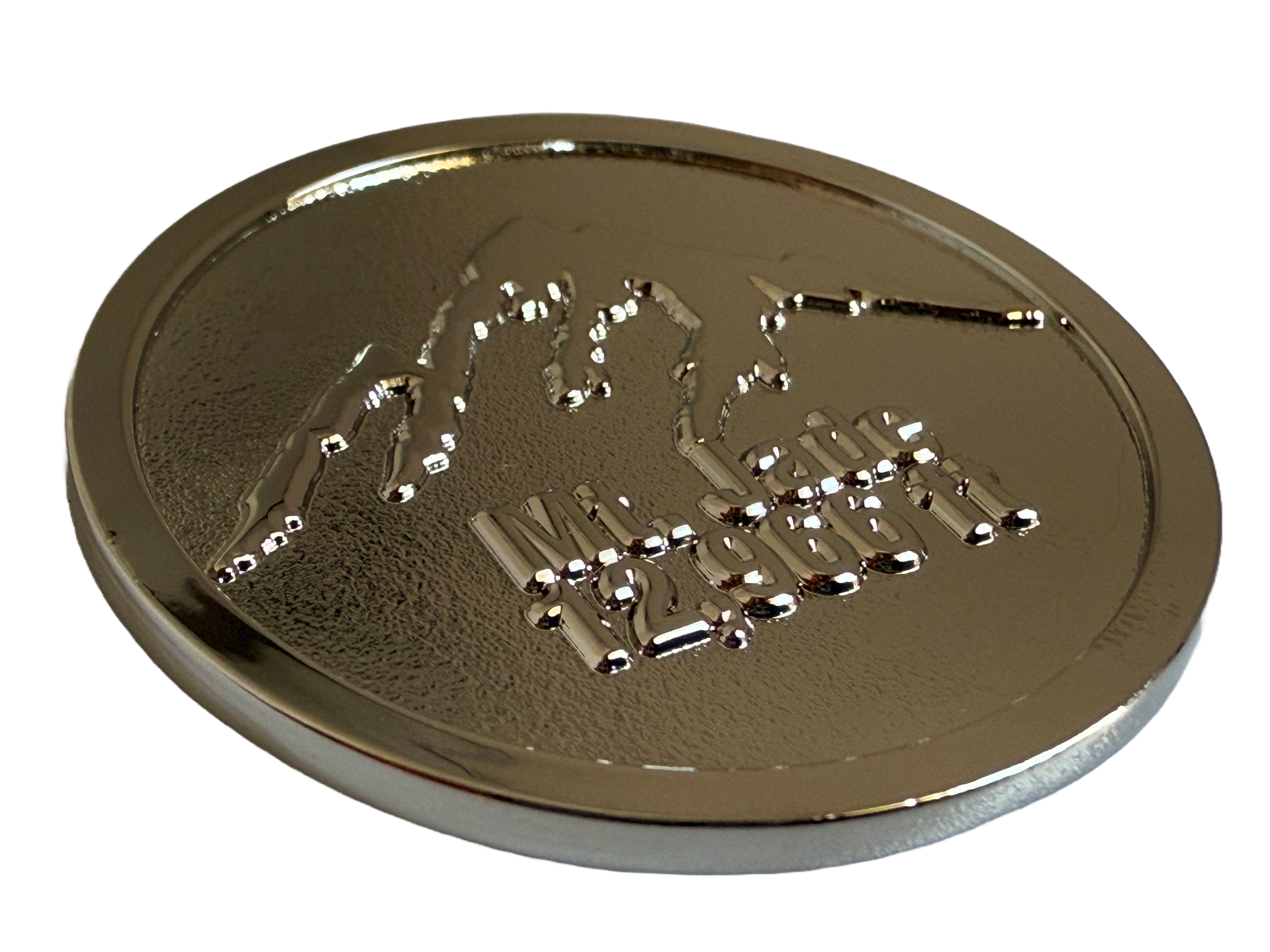

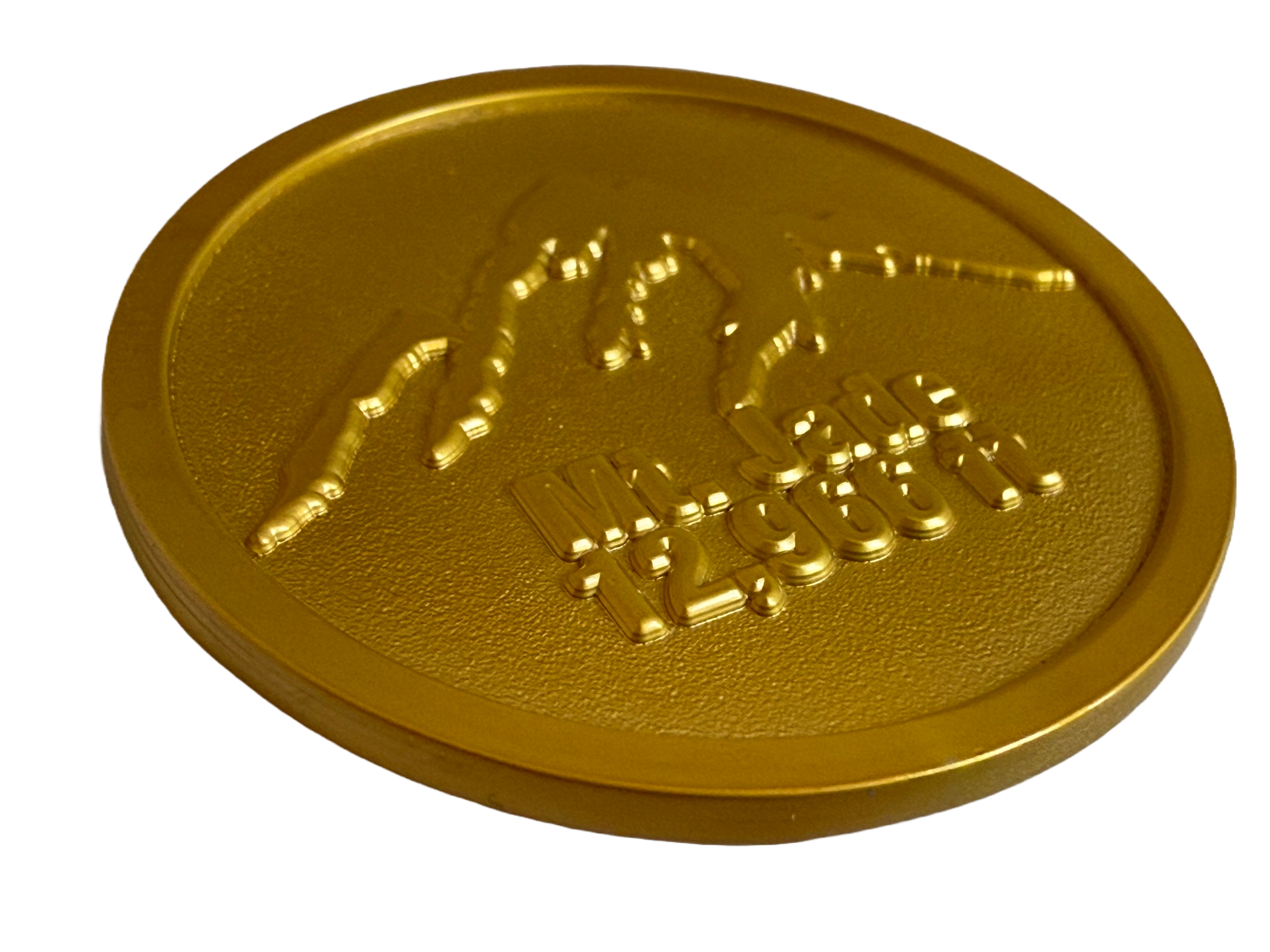

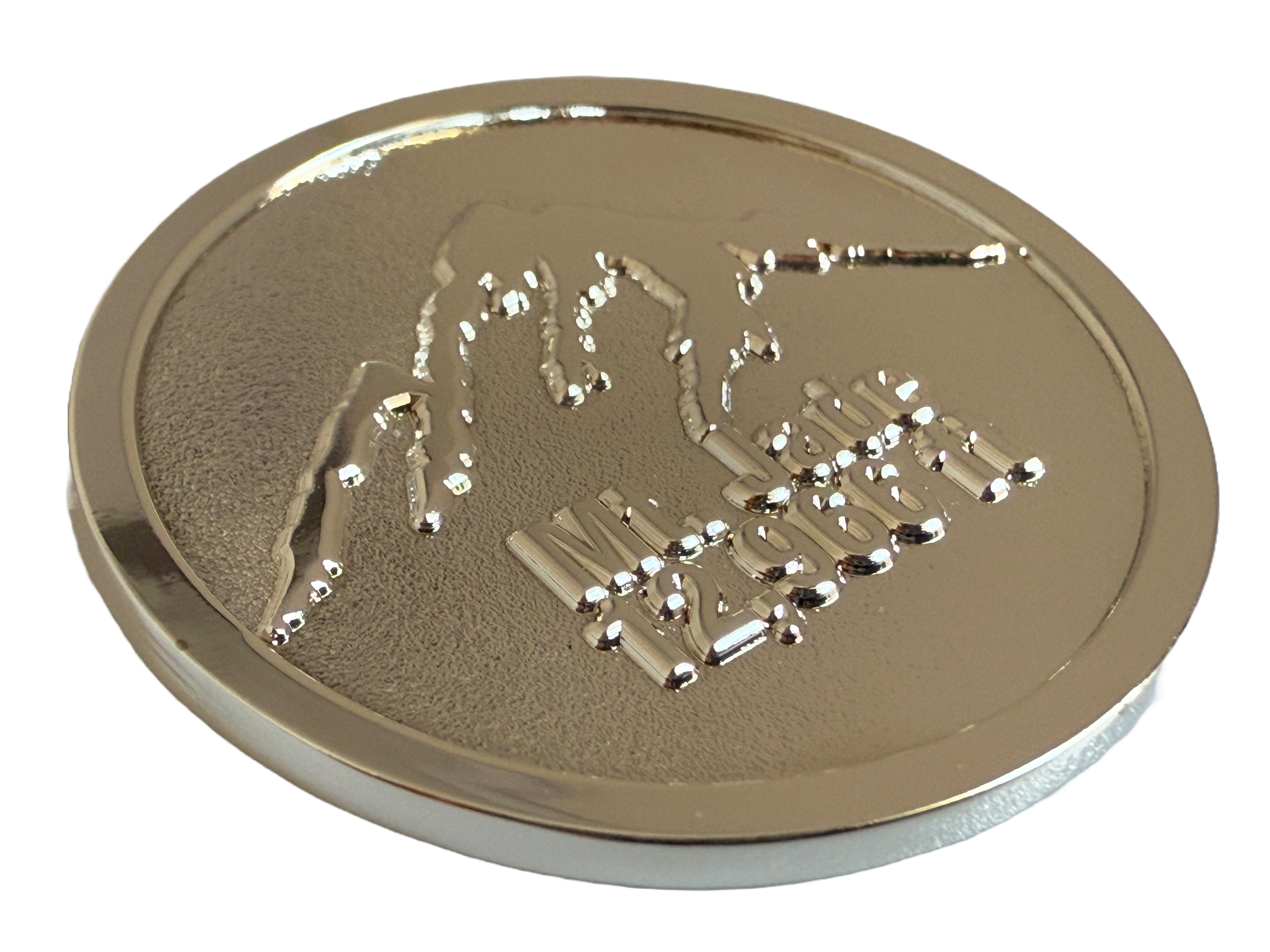

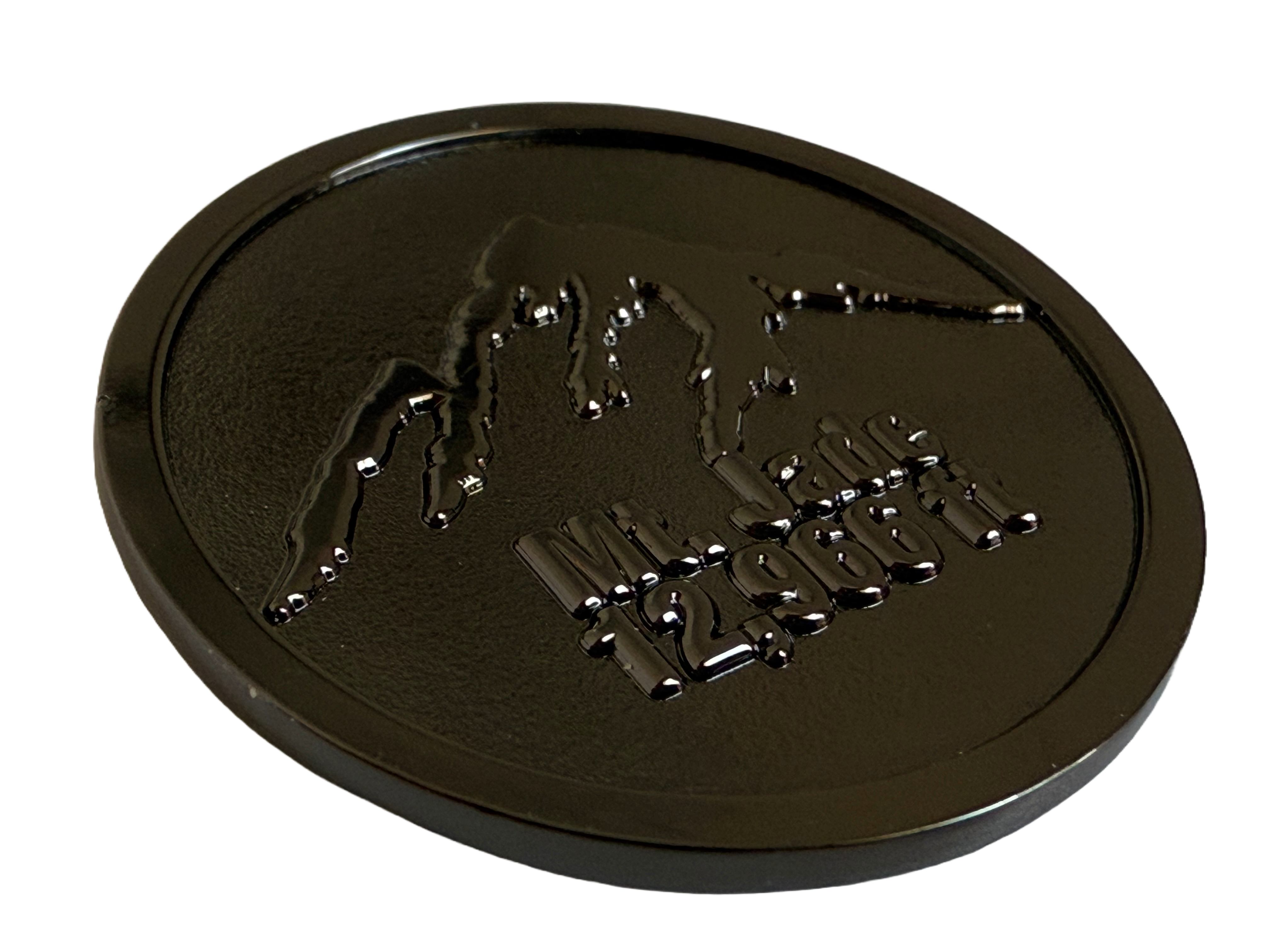

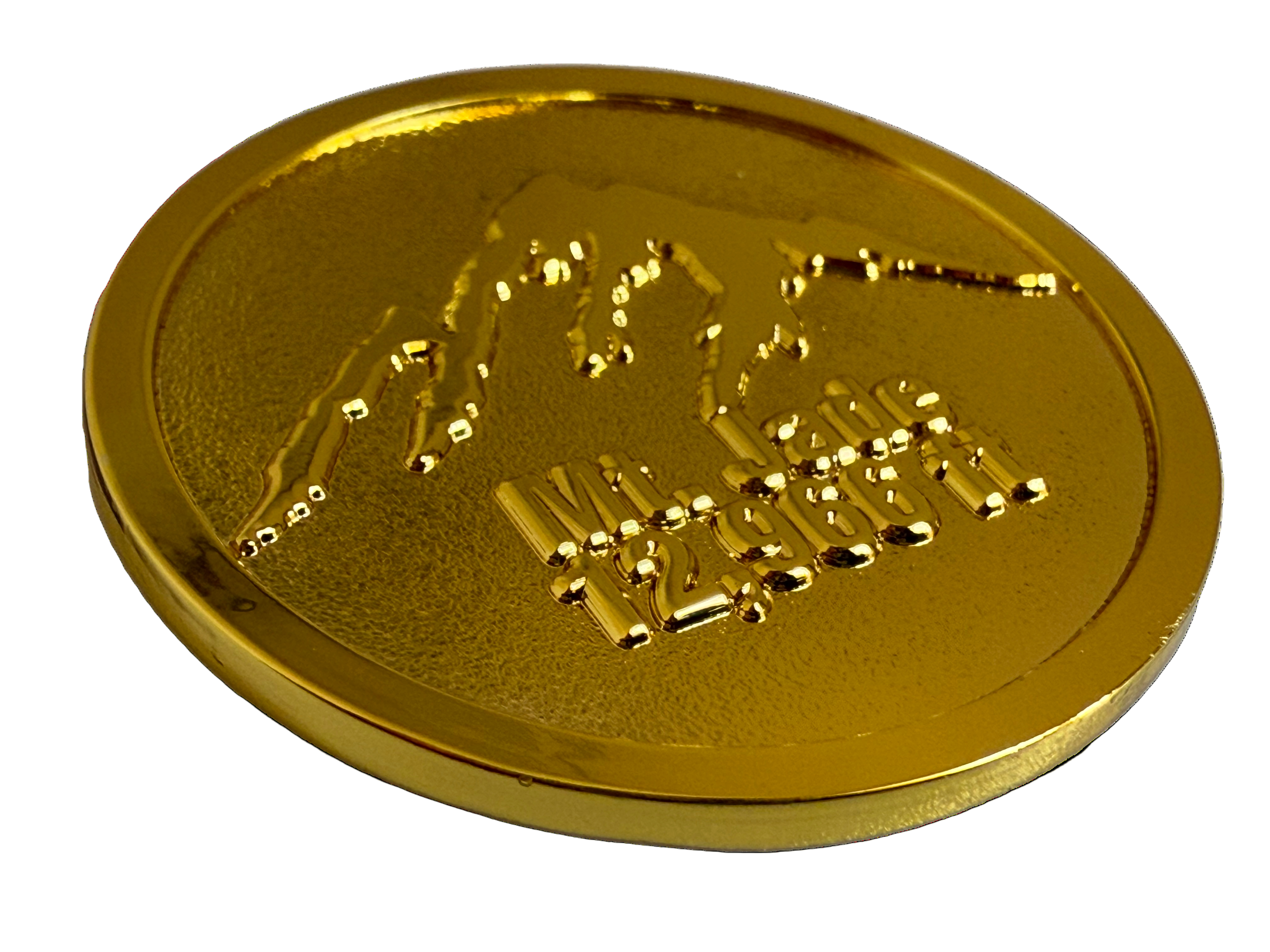

Die casting produces metal badges and emblems with crisp detail, repeatable geometry, and production grade durability for OEM applications.
Fine Detail and Texture

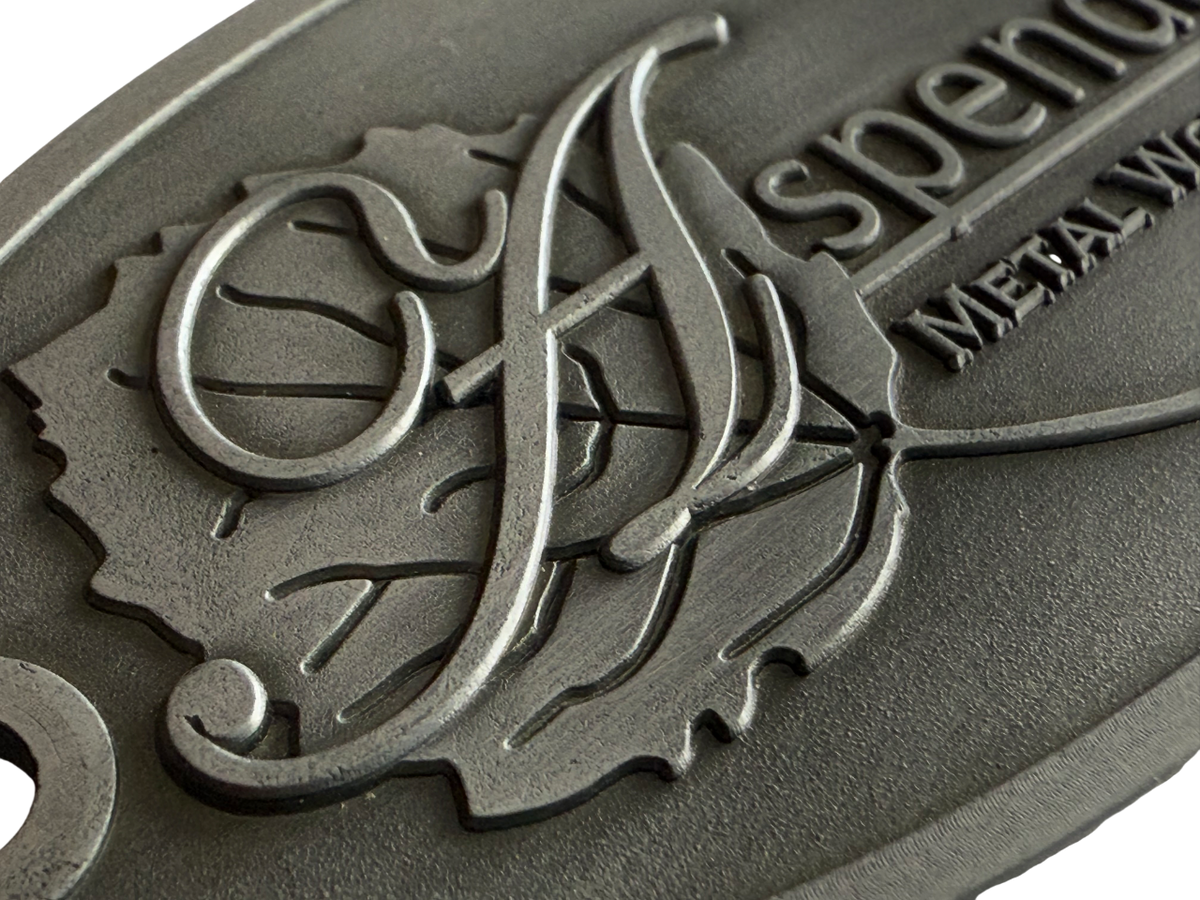

Zinc alloy fills fine features, enabling raised lettering, recessed logos, and controlled textures directly in the tool.
Consistency at Scale
Tooling controls shape and thickness, delivering uniform edge definition and dimensional accuracy across long production runs.
OEM Ready Consistency
Ideal for programs that require consistent branding across multiple product lines and extended lifecycles.
Common uses include automotive emblems, industrial equipment badges, appliance nameplates, and decorative branding components.
Common Applications for Die Cast Zinc Alloy Badges
Zinc alloy die casting supports both functional identification and high-end brand presentation across diverse industries. Engineered for precision and durability, these components meet stringent OEM specifications while maintaining consistent visual quality throughout extended production cycles.
Key Application Categories
-
Automotive emblems and exterior badges
-
Industrial equipment branding plates
-
Appliance and electronics logos
-
OEM product identification badges
-
Decorative metal branding components
Engineered for precision manufacturing environments where dimensional consistency, surface finish quality, and production scalability define program success.
Production Volumes and Lead Times
Die casting is optimized for repeatable medium to high volume production once tooling is established. This process delivers efficiency, cost stability, and reliable support for long-term OEM programs.
Efficient per unit pricing at scale
Stable long term OEM program repeatability
Typical Fit
Die casting is best suited for programs where tooling supports ongoing production runs with consistent geometry over time.
Lead Time Drivers
Lead times vary based on tooling complexity, finish requirements, and order volume. Once tooling is approved, production becomes predictable and scalable.
Technical Capabilities
Engineering Supported Die Cast Badge Projects
Design for Manufacturability Review
Tooling and Process Engineering
Finish and Coating Specification
Attachment and Application Validation
