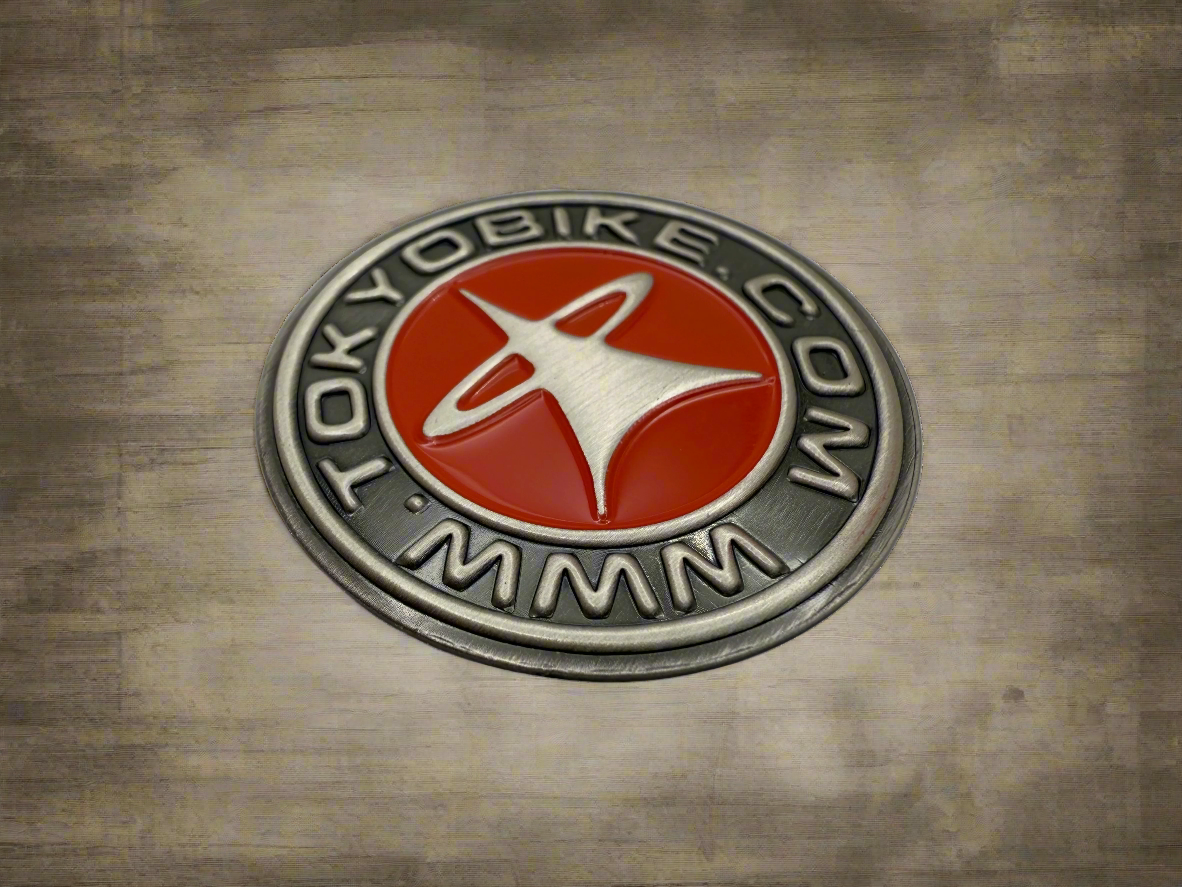

Embossing Process for Metal Nameplates and Components
Embossing is a precision forming process used to create raised or recessed features directly in the material without removing mass. Geometry is defined through controlled tooling, pressure, and alignment to ensure consistent, repeatable results across production runs. It is well suited for durable identification and dimensional features in high volume manufacturing environments.
Designed for consistent geometry, clean surface definition, and long term production repeatability.
Embossing Process and Production Capabilities
Embossing is a precision forming process that creates raised and recessed features directly in the material without removing mass. Geometry is defined through controlled tooling and alignment, enabling consistent, repeatable output across production runs.
- Geometry is formed directly into the material using matched tooling
- Controlled forming ensures consistent feature depth and surface definition
- Tooling is engineered for repeatable output across production runs
- Compatible with a range of metals, thicknesses, and finishing processes
- Efficient for medium to high volume programs with minimal material waste
- Designed for long term OEM applications requiring consistency and durability
Consistency is built into the tooling and process, not inspected after production.
Why Embossing Is Used in Production
Embossing is selected when geometry can be formed directly into sheet material with consistent results across production runs.

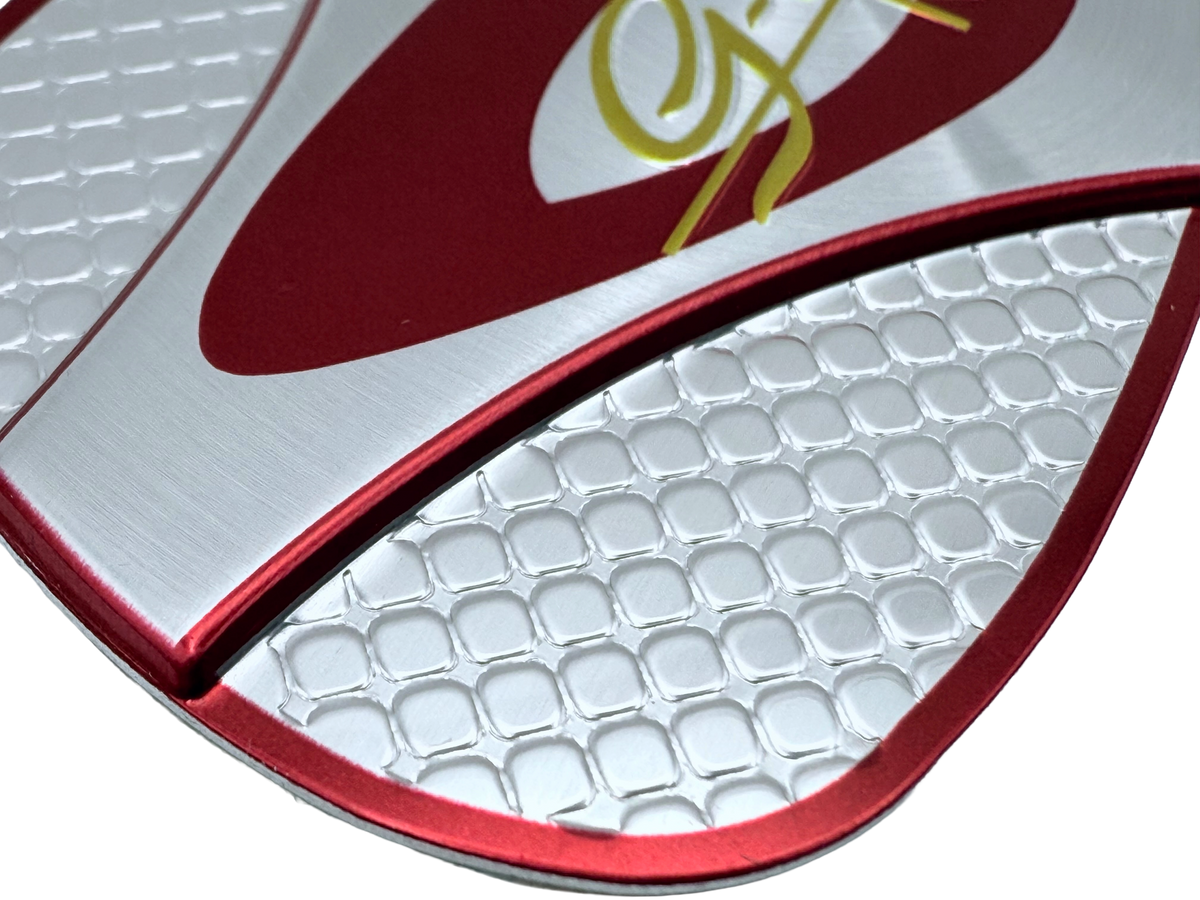

Formed Geometry
- Raised and recessed features formed in one operation
- No added material or secondary build up
- Clean edge definition with controlled depth
Production Efficiency
- Fast cycle times once tooling is established
- Minimal material waste
- Suitable for medium to high volume production

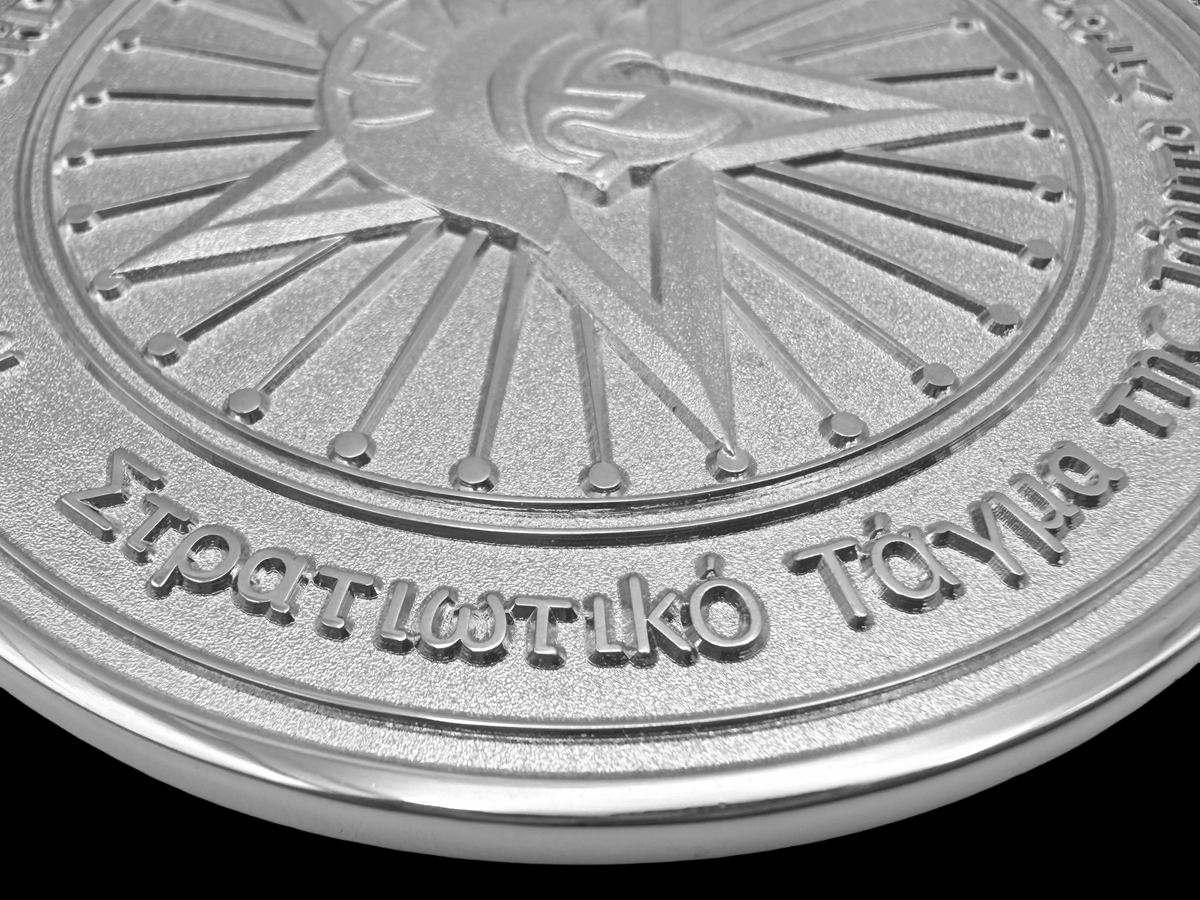

Surface Consistency
- Uniform feature depth across parts
- Repeatable surface appearance
- Compatible with post finishing processes
Best suited for programs where geometry can be efficiently formed into the base material.
Embossing Process: Five-Stage Manufacturing Workflow
Design Readiness
Validate artwork specifications and emboss intent
- Tolerance verification
- Tooling data preparation
Tool and Die Setup
Custom embossing die fabrication and verification
- Precision die fabrication
- Fit and finish alignment
Material Preparation
Substrate conditioning for embossing operations
- Material compatibility check
- Surface preparation
Controlled Embossing
Precision press operation with real-time monitoring
- Calibrated force application
- In-process quality checks
Post-Process Inspection
Final quality control, finishing, and secure packaging
- Dimensional verification
- Clean and package
Materials Used in Embossing

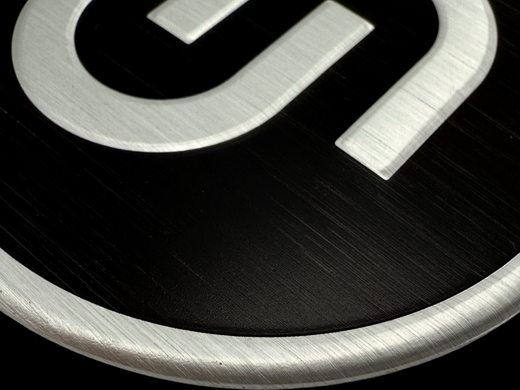

Aluminum
Stainless Steel
Brass
Other Metals
Design Considerations for Embossing
Embossing performance is directly influenced by geometry, material behavior, and tooling design. Proper consideration of these factors ensures consistent forming, clean feature definition, and repeatable results across production runs.
Brand Permanence
- Feature depth must be proportional to material thickness to maintain form integrity
- Gradual transitions and radii are required to support material flow during forming
- Sharp corners and excessive depth can lead to thinning, distortion, or tearing
Tooling
- Matched male and female dies must be engineered for precise feature replication
- Tooling alignment directly impacts consistency across production runs
- Pressure distribution must be balanced to avoid uneven forming or surface defects
Production Factors
- Material selection influences formability, springback, and final feature definition
- Part geometry must account for repeatability across medium to high volume production
- Secondary operations such as finishing or coating must be considered during design
Design must account for how material deforms and flows during forming, not just the intended final shape.
When Embossing May Not Be Ideal
Embossing is highly effective for forming clean, durable features directly into sheet material, but it is not suited for every geometry or application. Certain design conditions and performance requirements may limit its effectiveness, particularly when depth, complexity, or material behavior exceed forming capabilities.
Understanding these constraints early ensures the right process is selected and prevents issues during production.
Best suited for designs where geometry can be formed within material and tooling limits.
PROCESS LIMITATIONS
- Limited feature depth relative to material thickness
- Not suited for complex multi-level or highly dimensional geometry
- Material deformation must be considered during design
- Deep or aggressive features may require alternative processes
- Thicker or harder materials increase forming difficulty
Embossing performs best when geometry, material, and forming limits are aligned from the start.
Real-World Examples
Our metal & plastic embossing processes deliver precise multi-level emboss results with exceptional dimensional accuracy. Each application undergoes rigorous quality inspection to ensure consistent depth, crisp edges, and long-term durability across production runs.

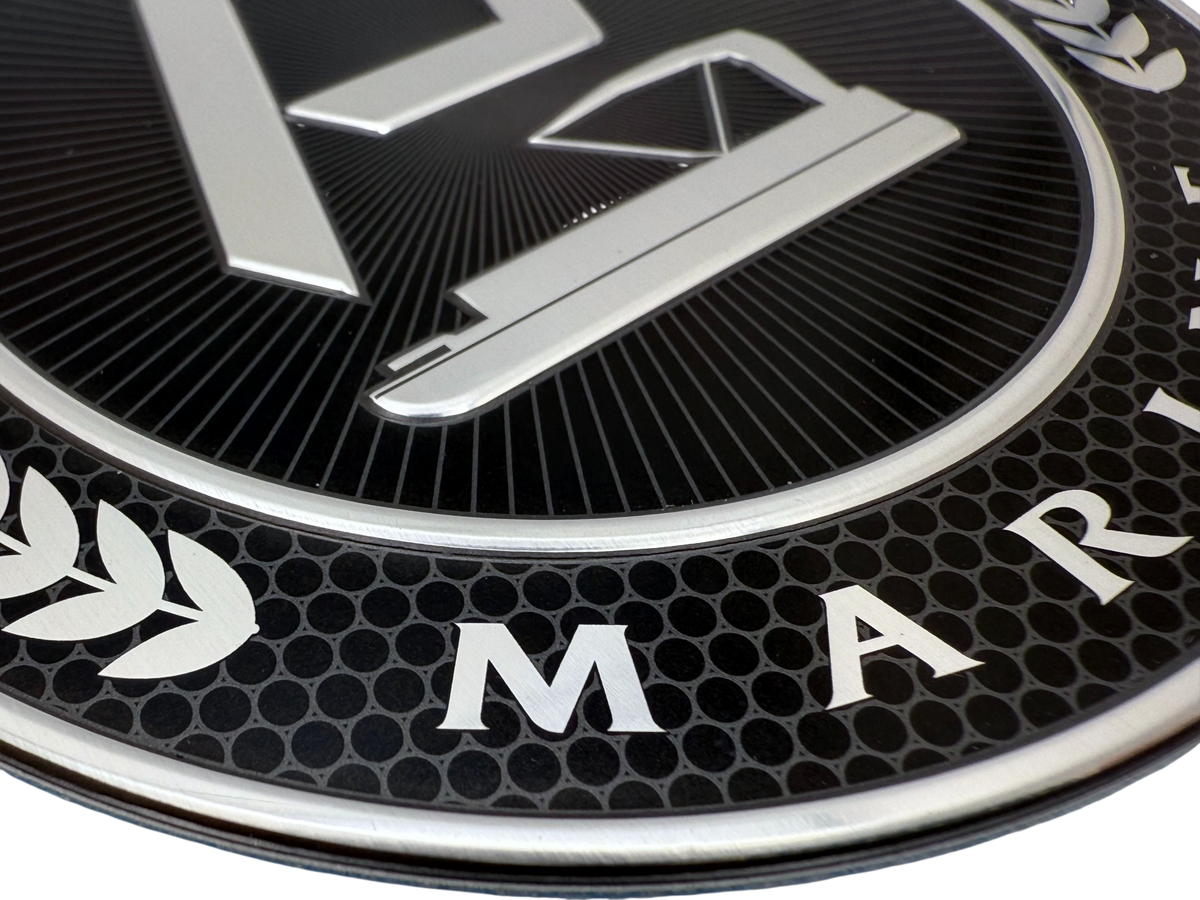

Automotive Nameplates

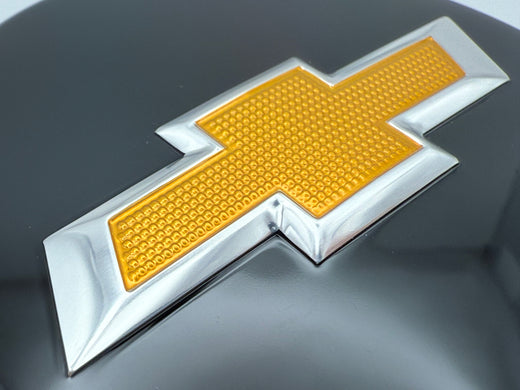

Deep emboss with accent finishes for OEM applications. See automotive applications

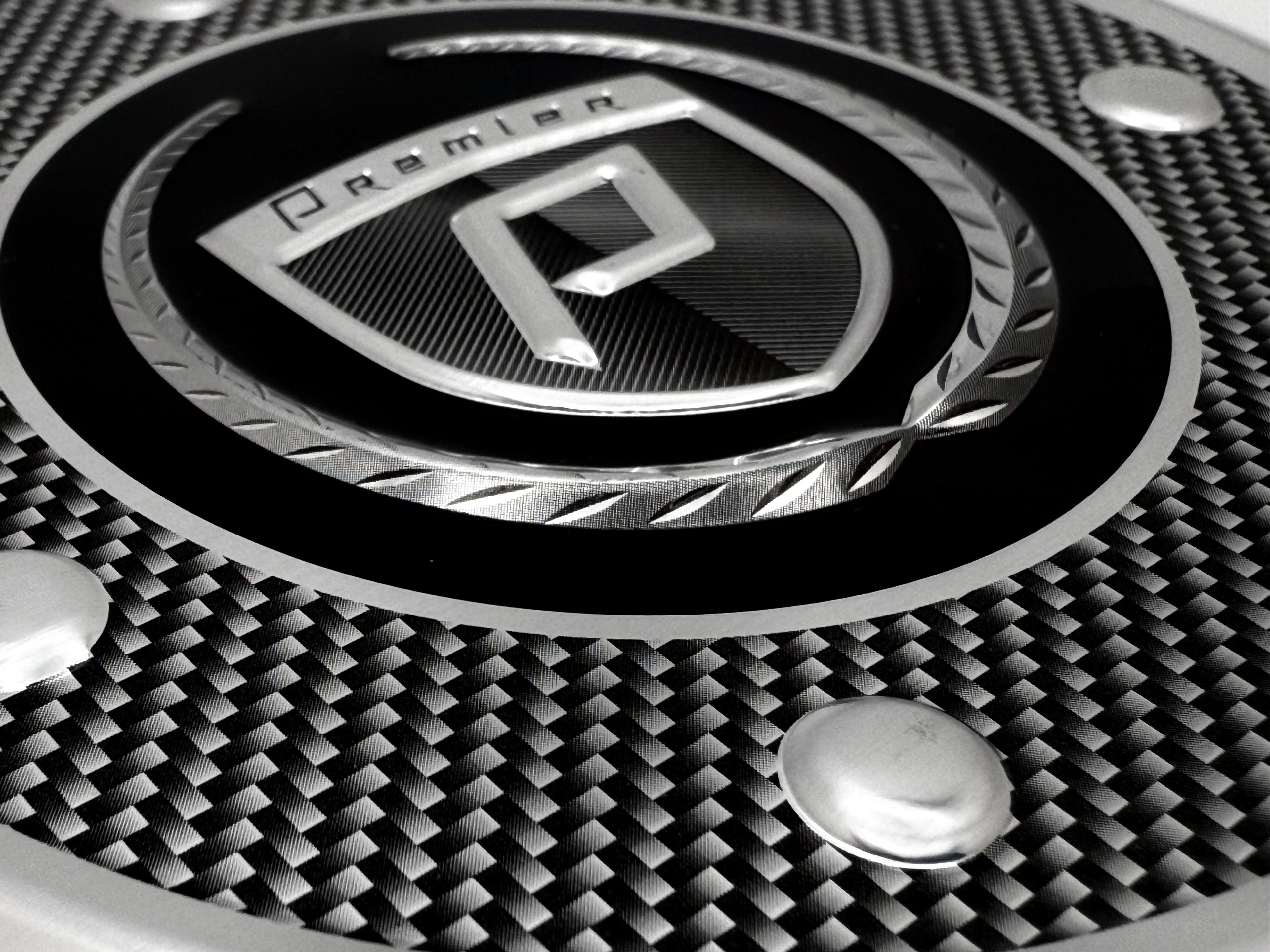

Industrial Equipment Nameplates
Multi-level embossing for harsh environments. Learn about industrial nameplates
Embossing Process FAQs
Embossing is a forming process that creates raised or recessed features by pressing material between matched tooling under controlled force. Unlike material removal methods, embossing reshapes the substrate while maintaining material continuity. This process is commonly used for nameplates, labels, and badges requiring defined depth and repeatability.
Embossing is commonly performed on aluminum, stainless steel, brass, copper, and select polymers. Material selection depends on thickness, hardness, and the required emboss depth. Stamped metals are most typical for embossed nameplates and industrial labels.
Embossing forms the material using pressure, while engraving and etching remove material. Embossing produces smoother transitions, stronger structural integrity, and better durability for high-volume production. It is often preferred for OEM badges and industrial identification.
Achievable tolerances depend on material, tooling design, and press control. Consistent emboss depth and edge definition are maintained through calibrated tooling and validated process parameters. Production tolerances are established during qualification and monitored throughout runs.
Yes. Embossing is well suited for medium to high-volume OEM production due to its repeatability and tooling longevity. Once validated, the process delivers consistent results across large production runs.
Yes, embossing can be combined with coatings and finishes, but compatibility depends on the base material being embossed. Aluminum, stainless steel, brass, and other metals accept different finishes, and emboss depth, edge geometry, and surface condition influence how coatings perform. Finish selection is evaluated during process development to preserve edge definition, surface integrity, and long-term durability.
Embossed parts are formed from flat material using pressure, while die cast parts are created by injecting molten metal into a mold. Embossing is typically used for thin metal nameplates and labels, while die cast zinc is used for thicker, fully three-dimensional components.
Quality checks include in-process visual inspection, dimensional verification, and comparison to approved samples. Process controls are documented and maintained throughout production. Final inspection confirms compliance before release.
