01
Reduce Production Waste
Catch geometry, material, finish, and attachment conflicts before they become repeat scrap.
TECHNICAL RESOURCE
Design for Manufacturability
Find the most feasible way to build the part before cost, scrap, and revisions scale.
Our DFM review evaluates the part as a system, considering geometry, material, finish, attachment, tolerances, environment, and production volume together to identify a production direction that can be repeated reliably at the required scale.
WHY DFM MATTERS
Why DFM Matters Before Production Begins.
A part can be technically producible and still be expensive, inconsistent, or difficult to scale. DFM identifies those conflicts before tooling and volume production turn small design decisions into recurring cost.
THE ECONOMIC EFFECT
Small decisions made before tooling can become recurring production cost at scale.
02
Control Total Cost
Avoid unnecessary tooling, secondary operations, tolerances, and correction cycles that add cost without improving the finished part.
03
Build for Repeatability
Align the design with a production method capable of reproducing the approved result across repeat orders.
04
Reach Production Sooner
Resolve manufacturability questions before sampling instead of discovering them through repeated revision cycles.
FOR OEM PROGRAMS
Small Issues Scale Fast.
A minor geometry, material, finish, or attachment issue may seem insignificant at low volume, but it can become a major cost problem when order quantity increases. A DFM review helps catch those issues before tooling and production begin.
Single Issue
A small design or attachment concern.
Pilot Sample Delay
Requires changes, clarification, or new tooling.
Scrap / Rework
Higher fallout during ramp-up and production.
Higher Unit Cost
Increased cost per part across the full order.
Program Disruption
Delays, lost momentum, and added expense.
What Gets Reviewed
DFM is not just a drawing check. It evaluates the part as a system — how it will be made, used, assembled, and expected to perform in the real world.

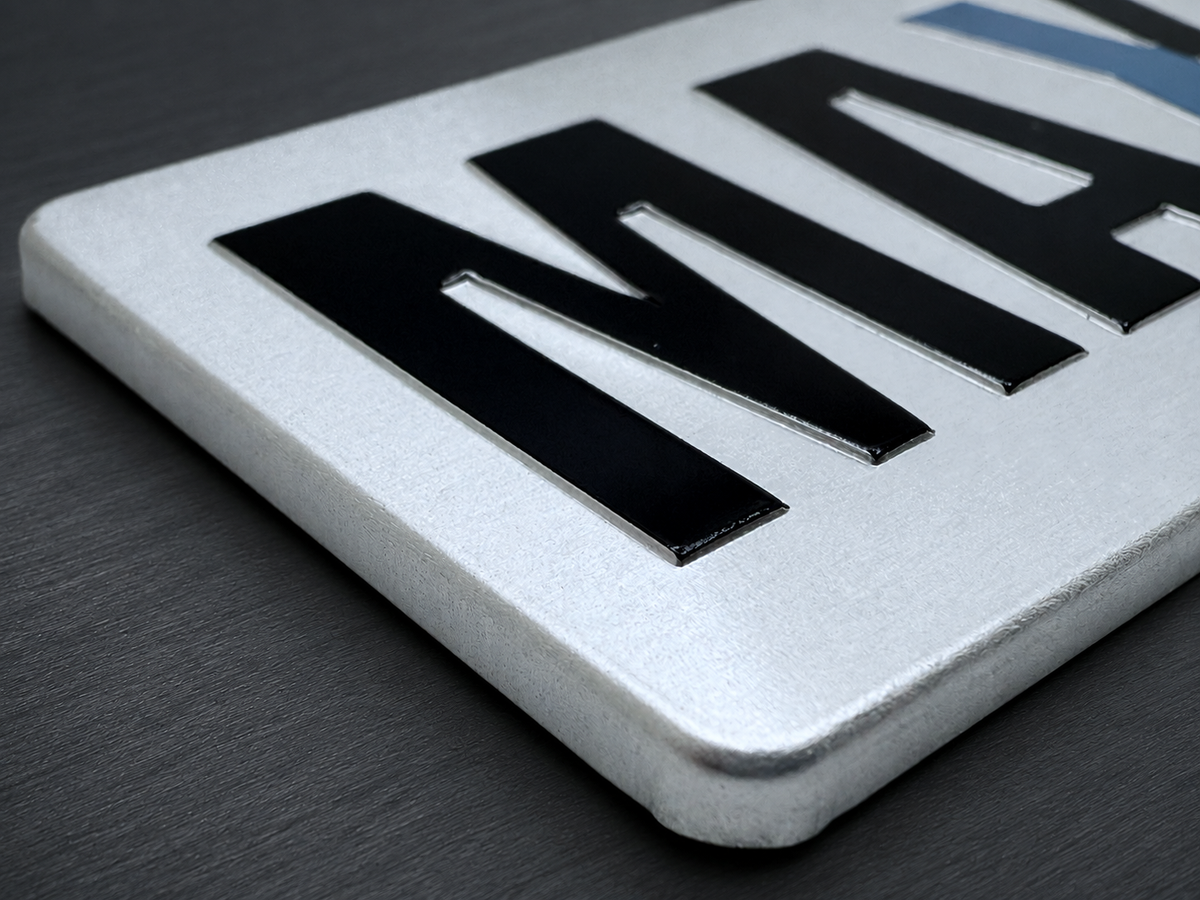

Geometry & Relief
Analyze geometry, wall thickness, relief, depth, radii, and draft for manufacturability.

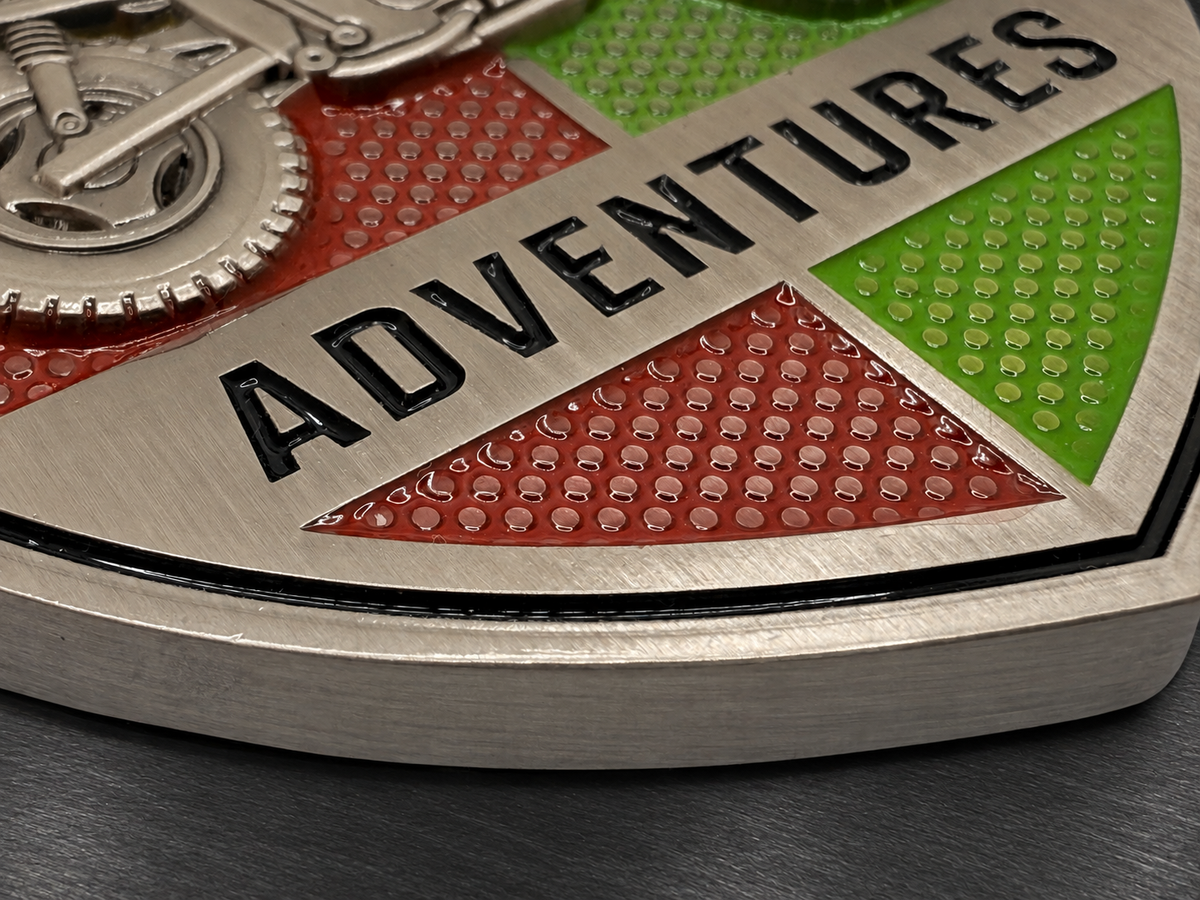

Material & Thickness
Confirm material selection and thickness for appearance, strength, forming, and process compatibility.

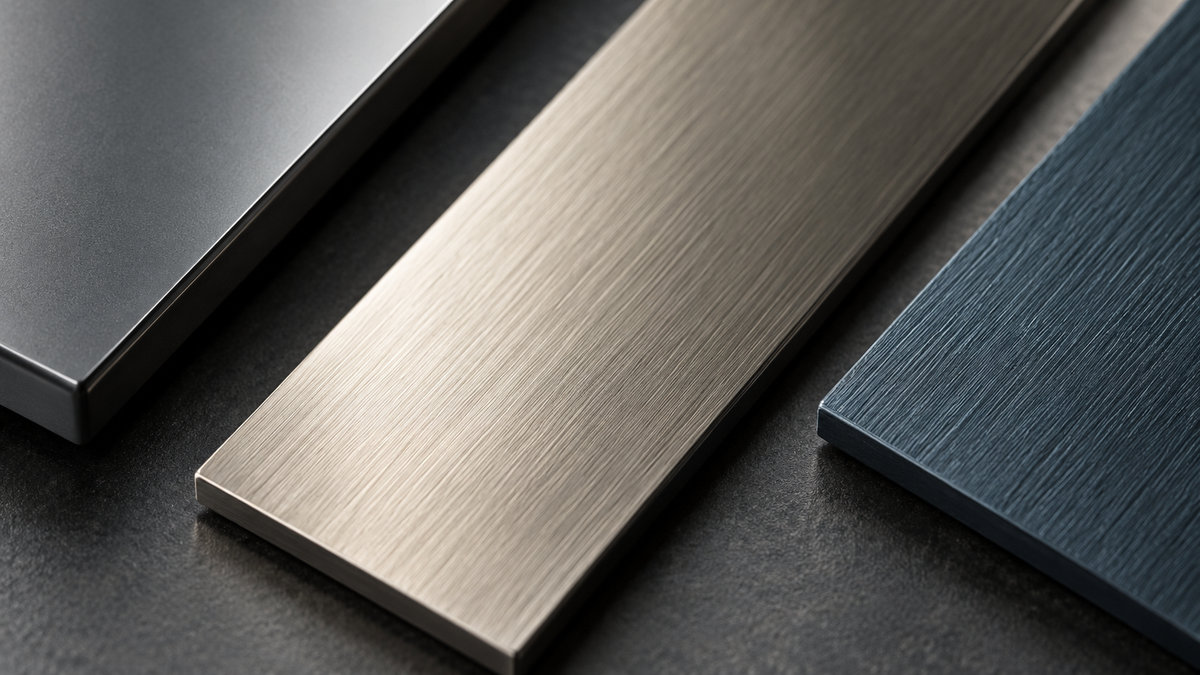

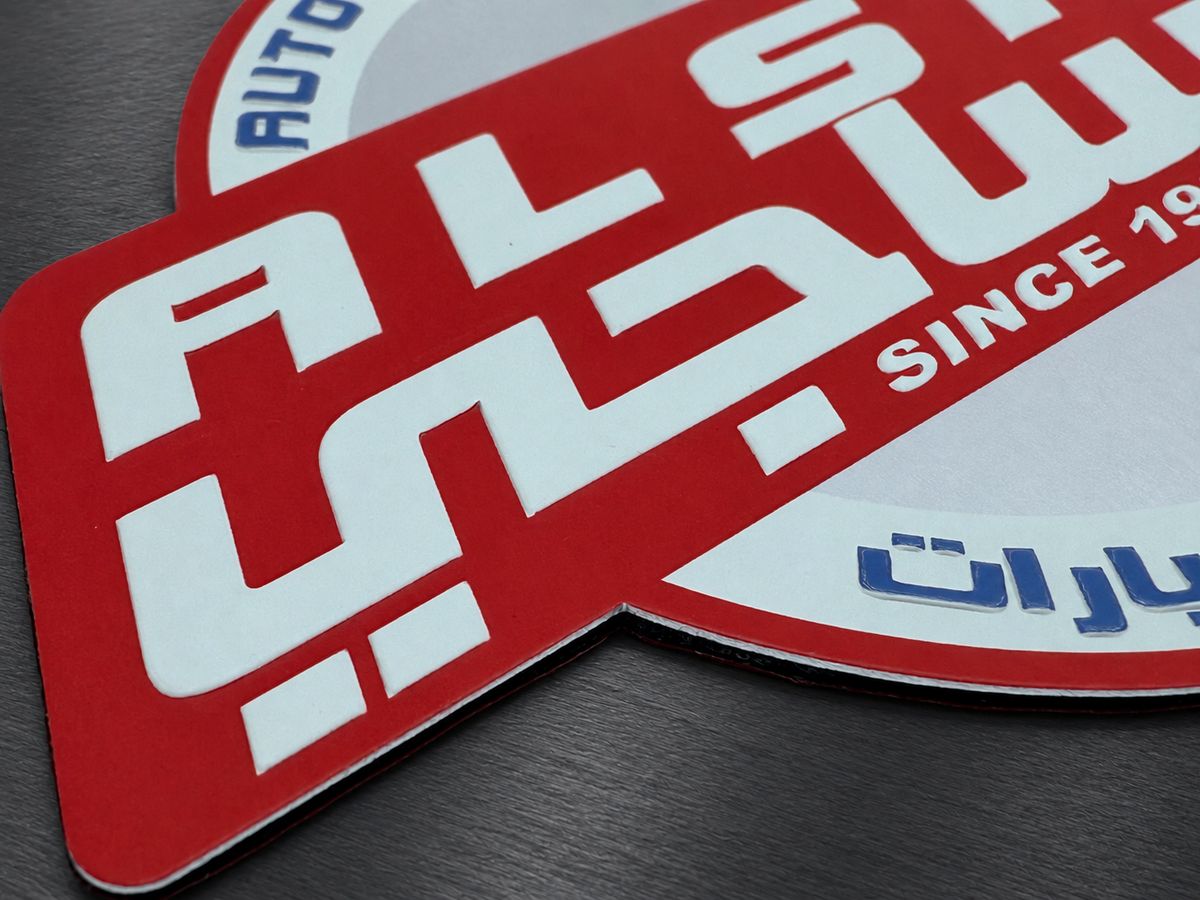

Appearance & Finish
Evaluate finish, texture, plating, color, graphics, and visual requirements.

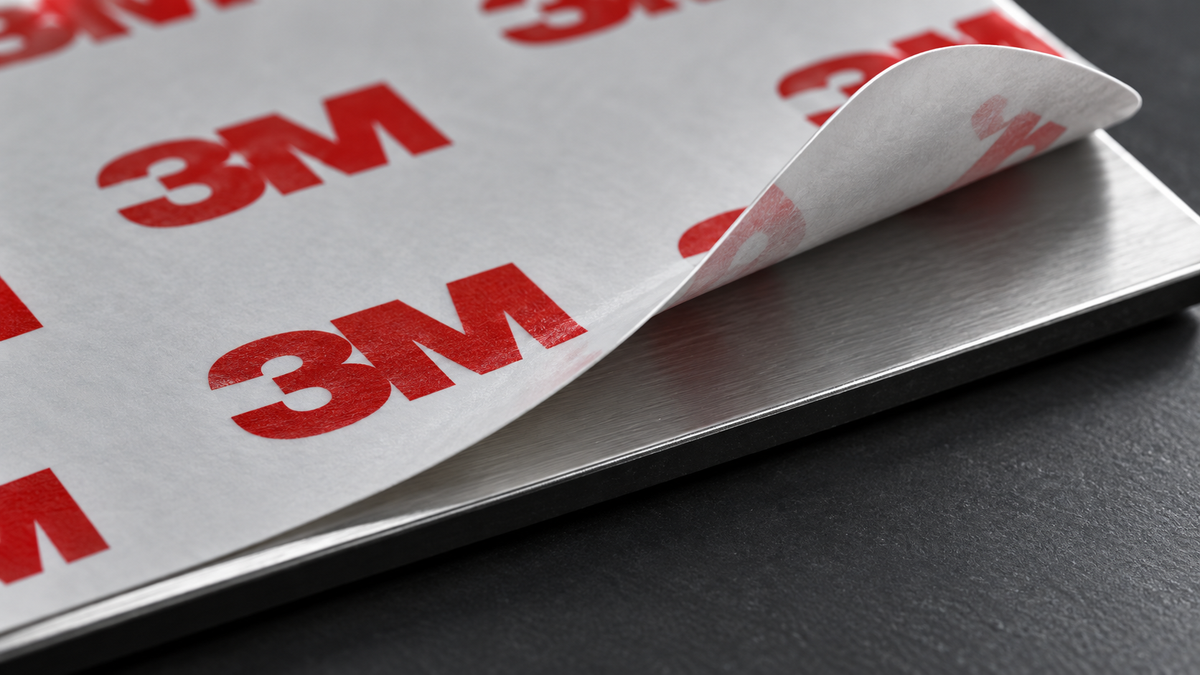

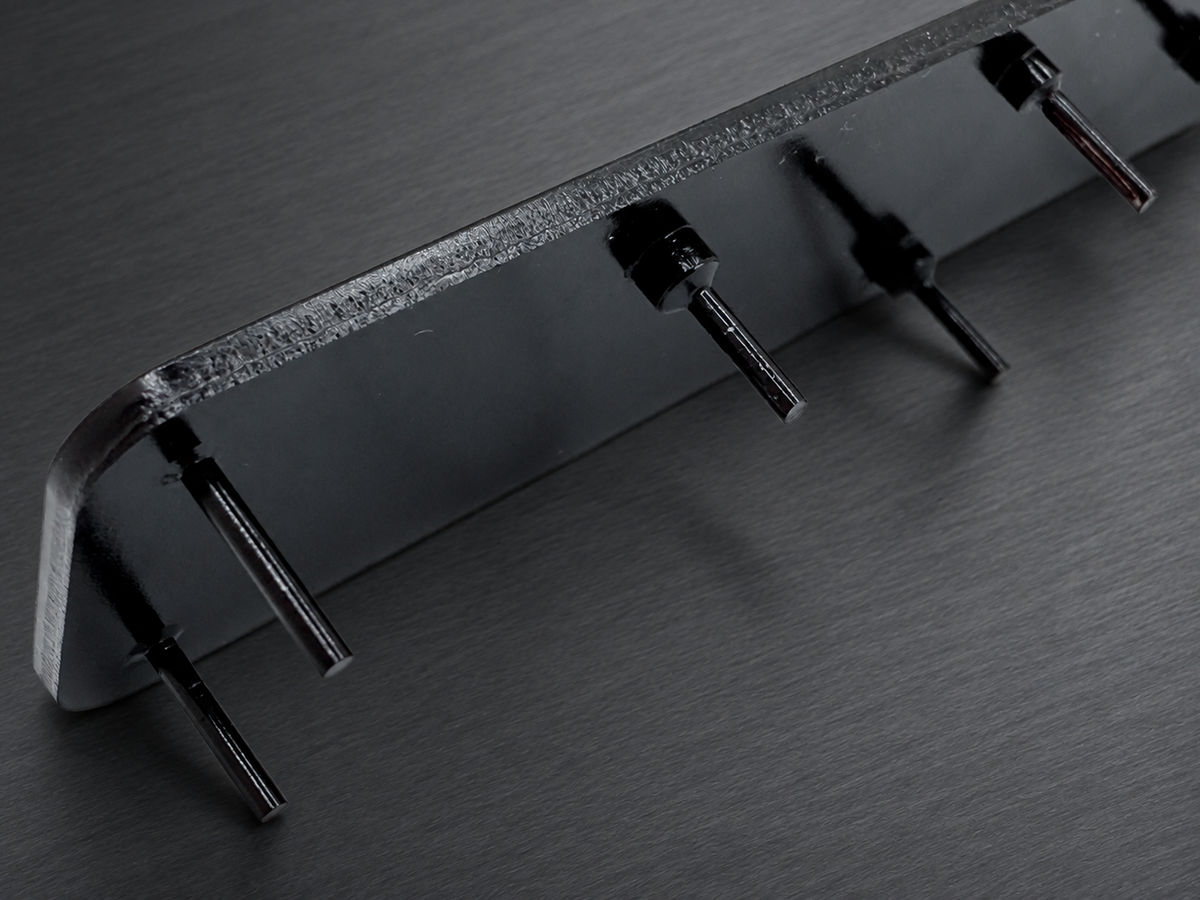

Attachment & Mounting
Review adhesive, posts, hardware, mounting surfaces, and installation requirements.
Environment & Durability
Define exposure to UV, moisture, chemicals, abrasion, temperature, cleaning, and real-world use.

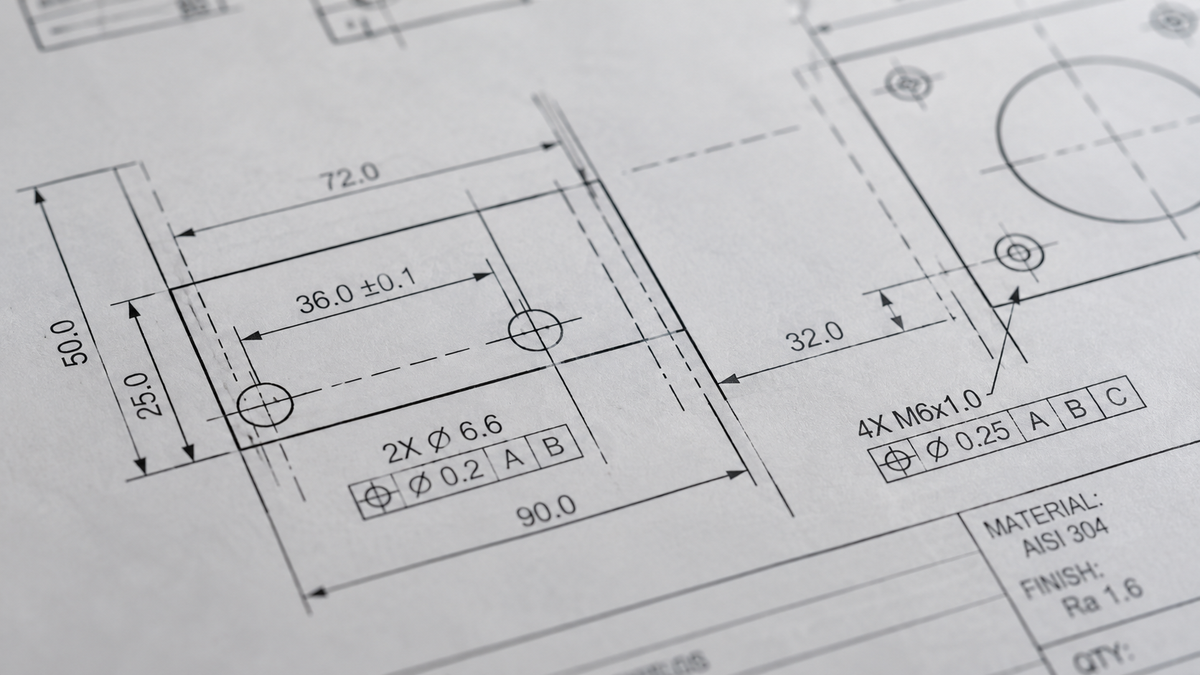

Tolerance & Function
Verify critical dimensions, fit, interface requirements, alignment, and functional tolerances.
WHAT THE CUSTOMER GETS BACK
A DFM Review Should Leave You With Clearer Decisions.
DFM reduces guesswork for engineering, sourcing, and product teams before sampling or tooling begins.
The value is clearer action.
OUTCOME
Recommended Construction
The production direction best aligned with the part, application, volume, and manufacturing requirements.
RISK FLAGS
Where Risk Exists
Identify where the current design may create avoidable cost, scrap, fit issues, or production difficulty.
TRADEOFF GUIDANCE
What Should Change or Stay
Clarify what can be preserved, simplified, or adjusted without losing the intended result.
NEXT STEP
What Happens Next
Define what is needed to move toward drawing finalization, sampling, tooling, approval, or production.
REQUIREMENT INTERACTIONS
Where Requirements Conflict
Many parts become difficult to produce not because one requirement is wrong, but because multiple requirements are misaligned. DFM evaluates them together before the conflict becomes production cost.
Premium Appearance vs. Outdoor Durability
A highly decorative finish may require a different construction when long term UV, moisture, or chemical exposure is expected.
WHAT USUALLY CHANGES:
Finish · Material · Construction
Fine Detail vs. Process Capability
A highly decorative finish may require a different construction when long term UV, moisture, or chemical exposure is expected.
WHAT USUALLY CHANGES:
Finish · Material · Construction
Tight Tolerance vs. Practical Cost
A highly decorative finish may require a different construction when long term UV, moisture, or chemical exposure is expected.
WHAT USUALLY CHANGES:
Finish · Material · Construction
Thin Part Profile vs. Mounting Method
A highly decorative finish may require a different construction when long term UV, moisture, or chemical exposure is expected.
WHAT USUALLY CHANGES:
Finish · Material · Construction
Low Volume vs. Tooling Intensive Construction
A highly decorative finish may require a different construction when long term UV, moisture, or chemical exposure is expected.
WHAT USUALLY CHANGES:
Finish · Material · Construction
Curved or Textured Surface vs. Adhesive Selection
A highly decorative finish may require a different construction when long term UV, moisture, or chemical exposure is expected.
WHAT USUALLY CHANGES:
Finish · Material · Construction
DFM IN PRACTICE
When Requirements Conflict, the Production Direction Has to Change.
Manufacturability is rarely a simple yes or no question. DFM identifies where requirements compete, defines the available tradeoffs, and helps determine which production direction best preserves appearance, function, repeatability, and cost at the required scale.
STAMPING + EMBOSSING + PRINT

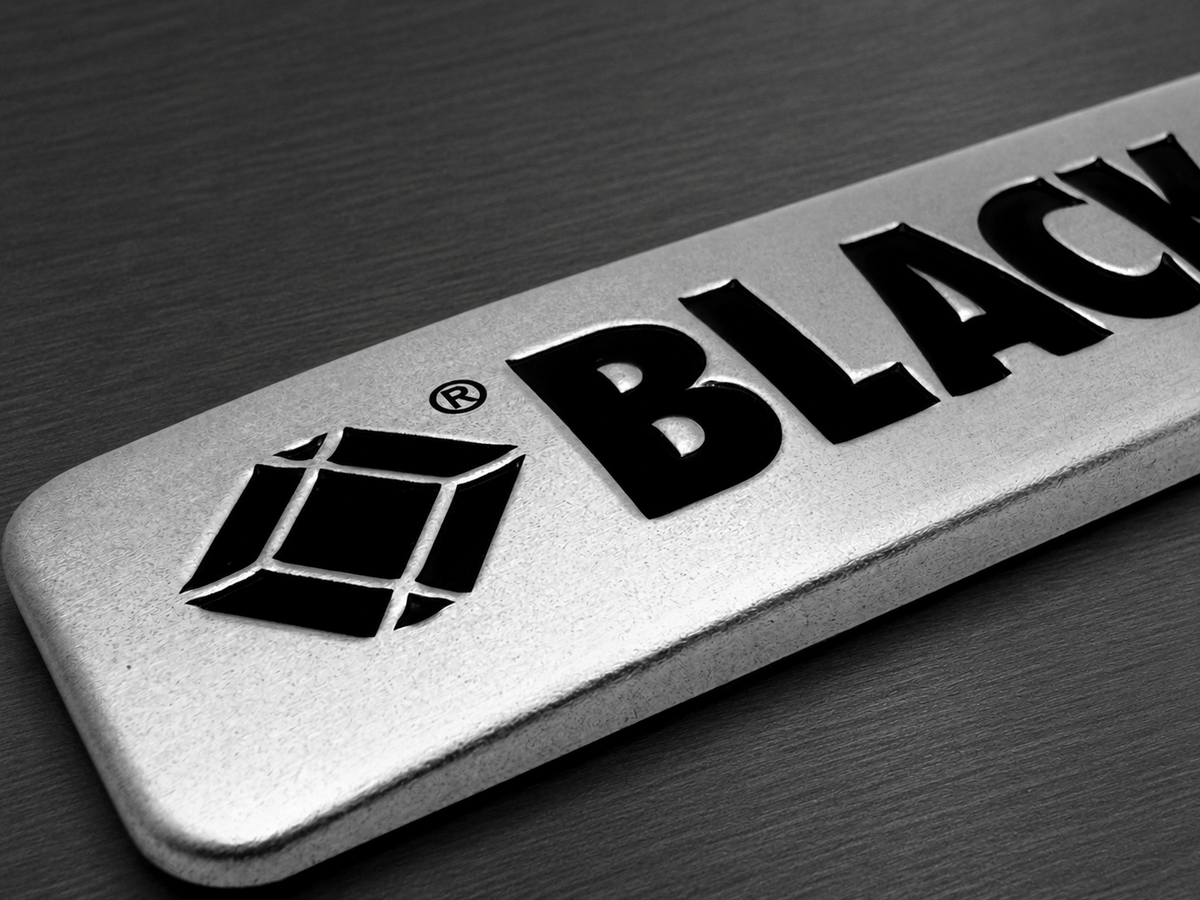

Sharp Corners vs. Stamped Construction
CUSTOMER INTENT
Retain the original sharp corner geometry while producing the badge using stamped and embossed aluminum with printed color.
DFM FINDING
The proposed corner radii were too small for the intended construction, creating risk of material deformation and ink cracking during forming.
RECOMMENDED DIRECTION
Increase the affected radii for this part, or use another manufacturing method capable of preserving the sharper geometry.
CUSTOMER VALUE
Resolve the geometry or process decision before tooling, sampling, and production scrap.

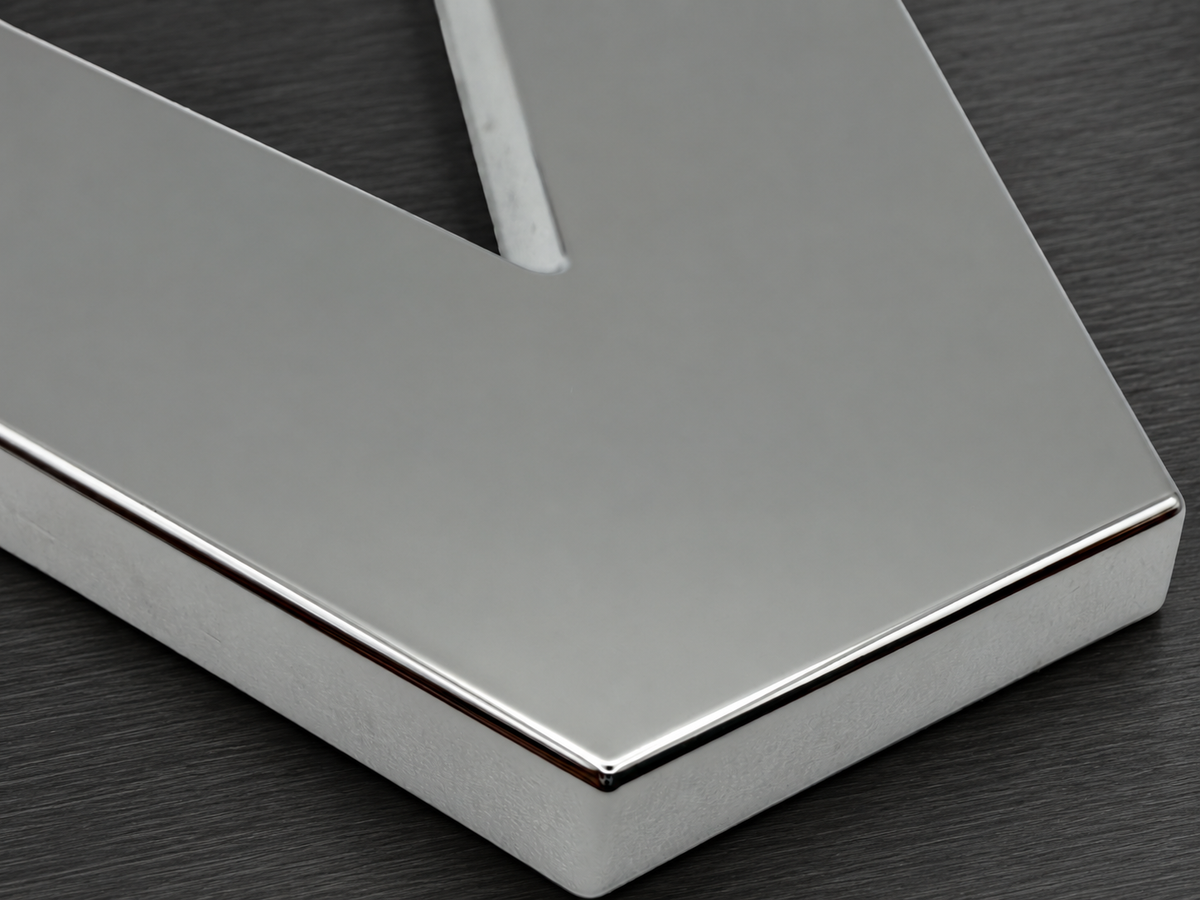

INJECTION MOLDING + BLACK CHROME
Brushed ABS vs. Black Chrome Plating
CUSTOMER INTENT
Create an injection molded ABS badge with visible hairline texture and black chrome plating.
DFM FINDING
The texture can be built into the mold, but the electroplated finish can substantially reduce its visual definition.
RECOMMENDED DIRECTION
Use a smooth mirror surface if black chrome is the priority, or change the finish or construction if the brushed appearance must remain visible.
CUSTOMER VALUE
Resolve the appearance tradeoff before mold completion and plating trials.
VOLUME + TOOLING ECONOMICS

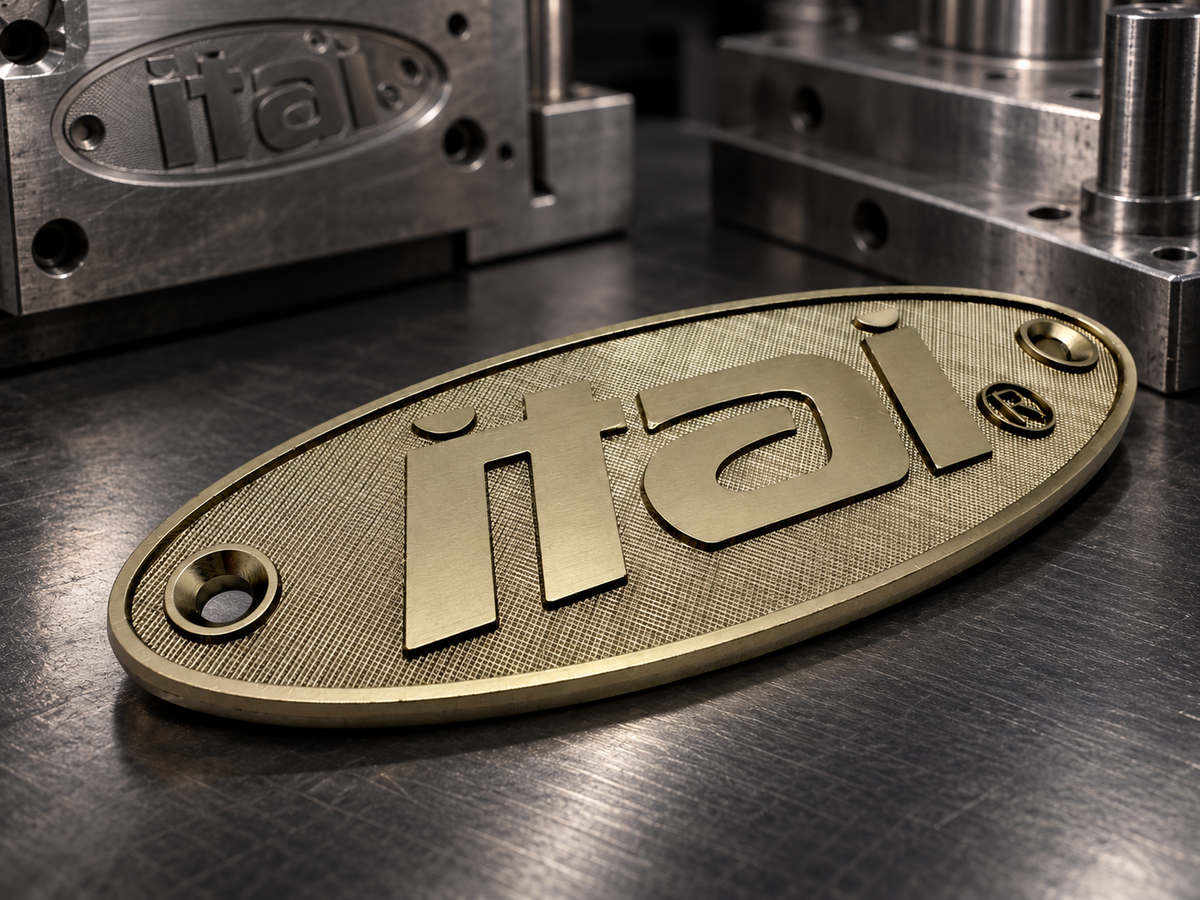

Low Volume vs. Tooling Intensive
CUSTOMER INTENT
Use a premium production method that requires dedicated tooling even though the expected annual quantity is relatively low.
DFM FINDING
The construction may be manufacturable, but tooling investment can dominate the economics when spread across too few production units.
RECOMMENDED DIRECTION
Keep the tooling intensive construction when appearance or performance justifies the investment, or evaluate a lower tooling process that meets the critical requirements with better program economics.
CUSTOMER VALUE
Make the tooling decision before committing capital and select the route that makes the most sense for expected program volume.
DFM does not simply ask whether a part can be made. It determines which production direction makes the most sense when appearance, function, repeatability, volume, tooling, and cost are considered together.
How a DFM Review Works
A focused, collaborative process that turns part requirements into a practical production direction.
01
Submit the Part Information
Send a finished drawing, sketch, photo, sample, or concept.
02
Review the Part as a System
Evaluate geometry, material, finish, attachment, tolerances, environment, and production volume together.
03
Align Intent With Feasible Production
Identify practical options, tradeoffs, constraints, and potential production risks.
04
Recommend the Best Path Forward
Provide clear direction for drawing finalization, sampling, approval, tooling, and production.
Related Resources
Explore more technical resources to support your project.
LET'S MAKE IT HAPPEN
Bring Us the Part. We'll Help Define What Production Requires.
Send a finished drawing, sketch, photo, sample, or concept, and our team will review manufacturability before the project moves forward.
