Compare adhesive, mechanical, and removable attachment methods by surface, environment, load, and service requirements.
ATTACHMENT METHODS
ADHESIVE SELECTION
GEOMETRY

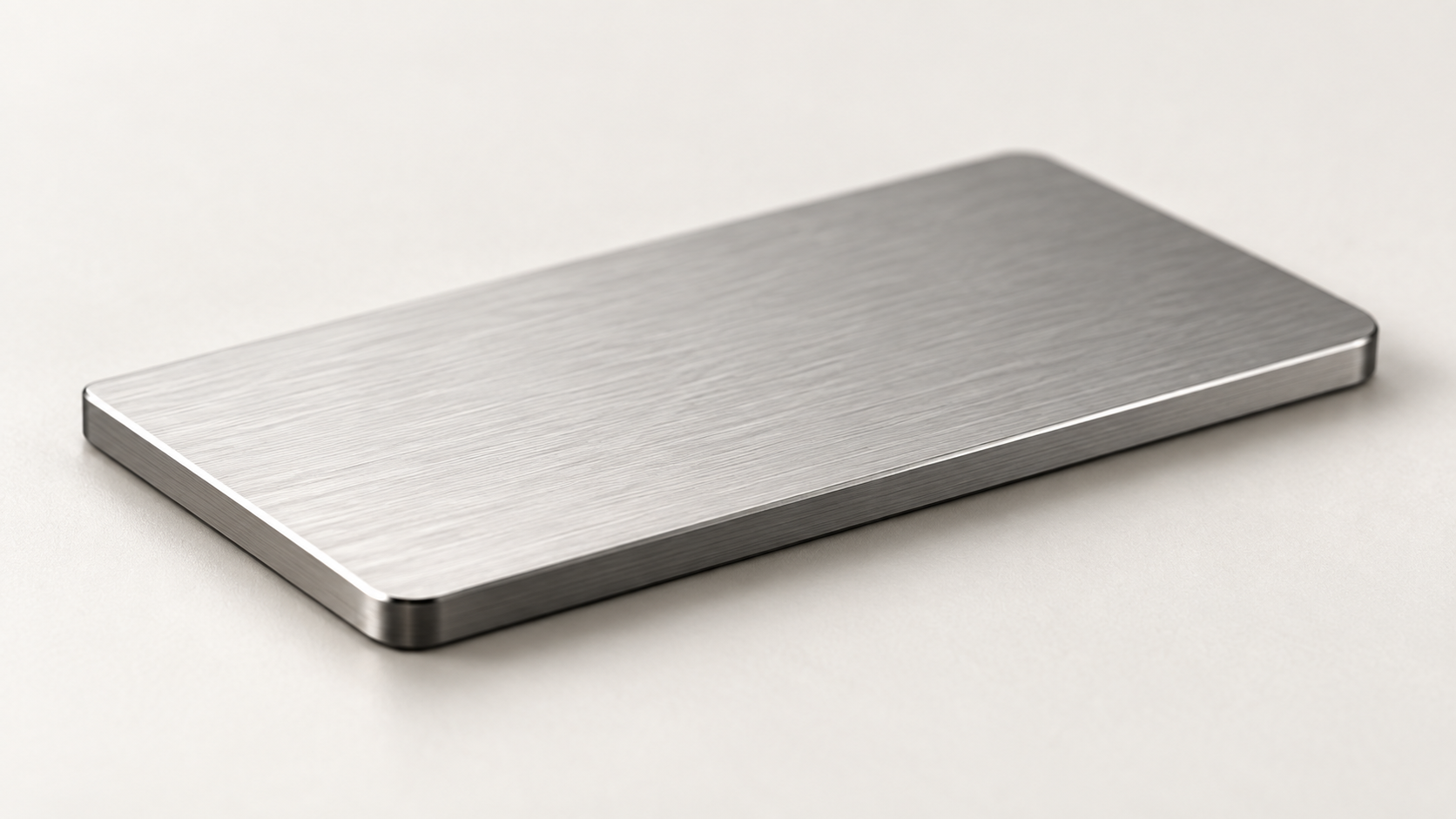

Standard, even surface.

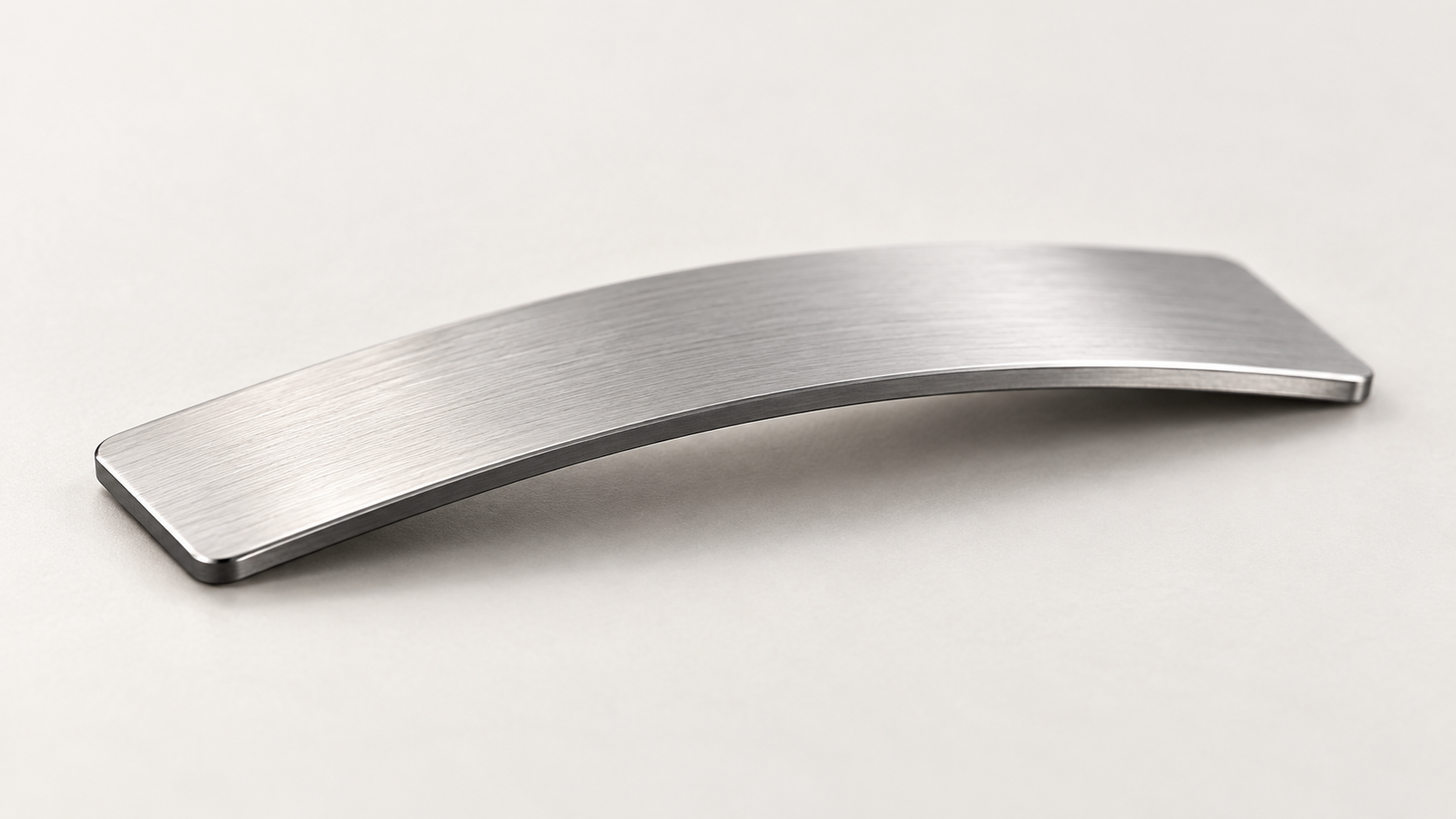

Requires a flexible adhesive or mechanical solution.

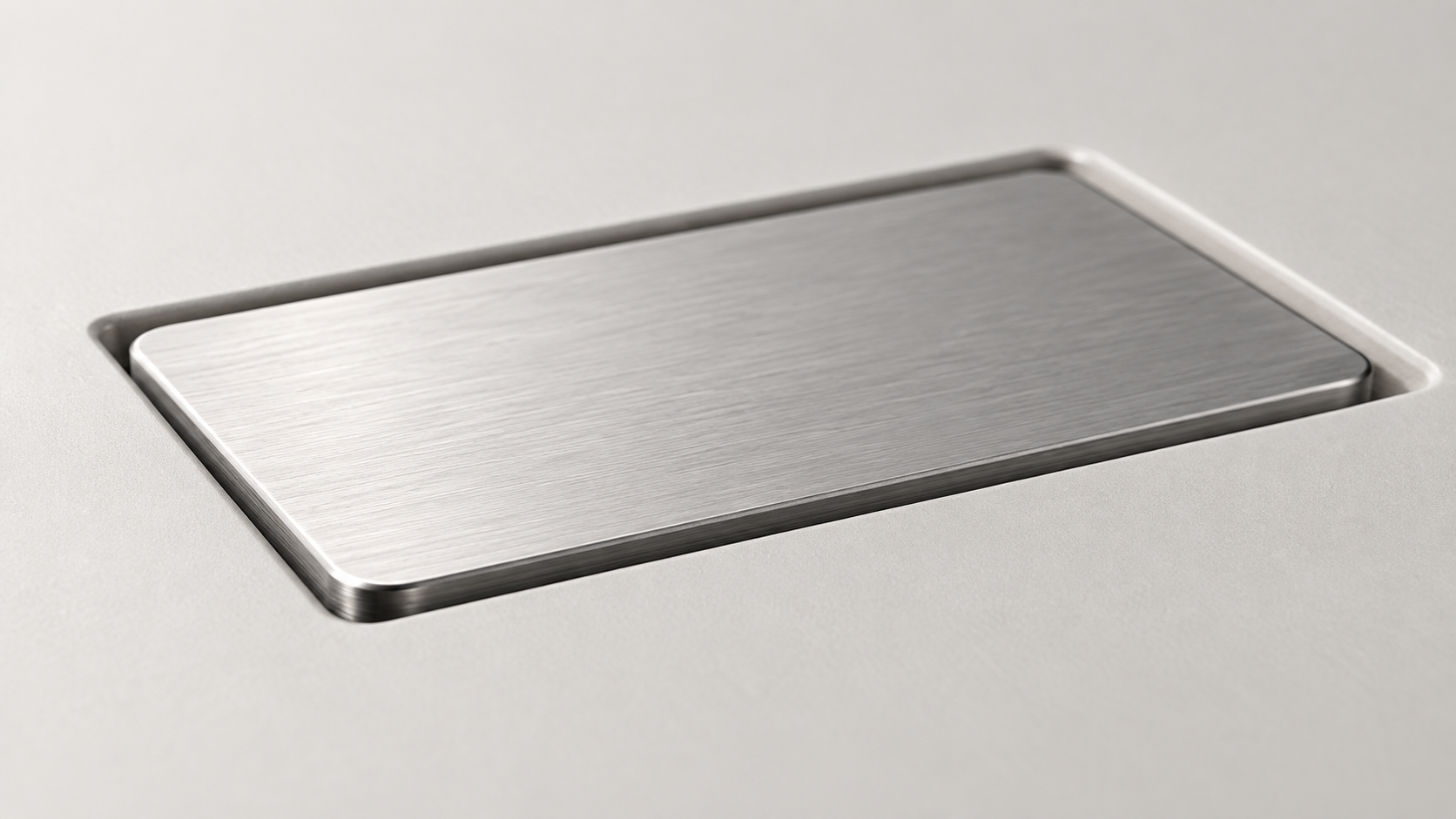

May reduce bond area and require special consideration.

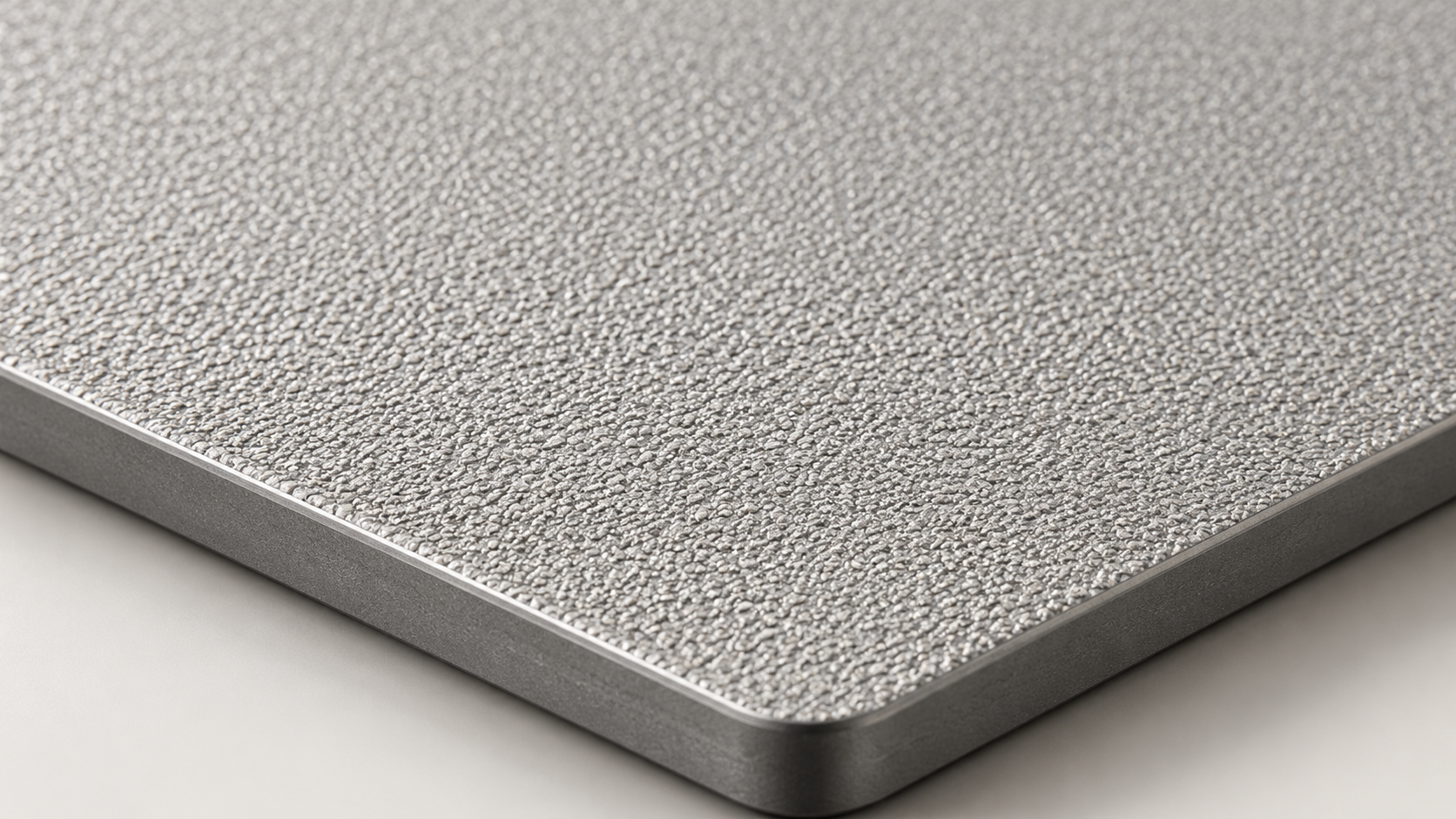

Surface texture can reduce adhesive contact.

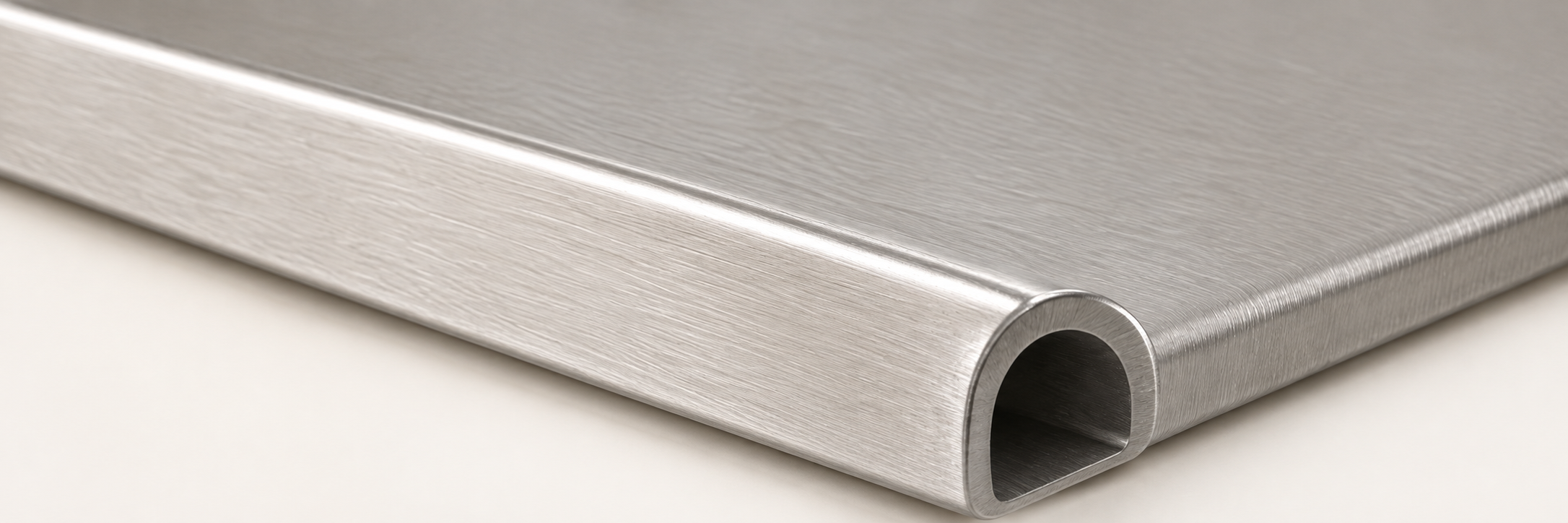

Often requires thicker adhesive or mechanical attachment.

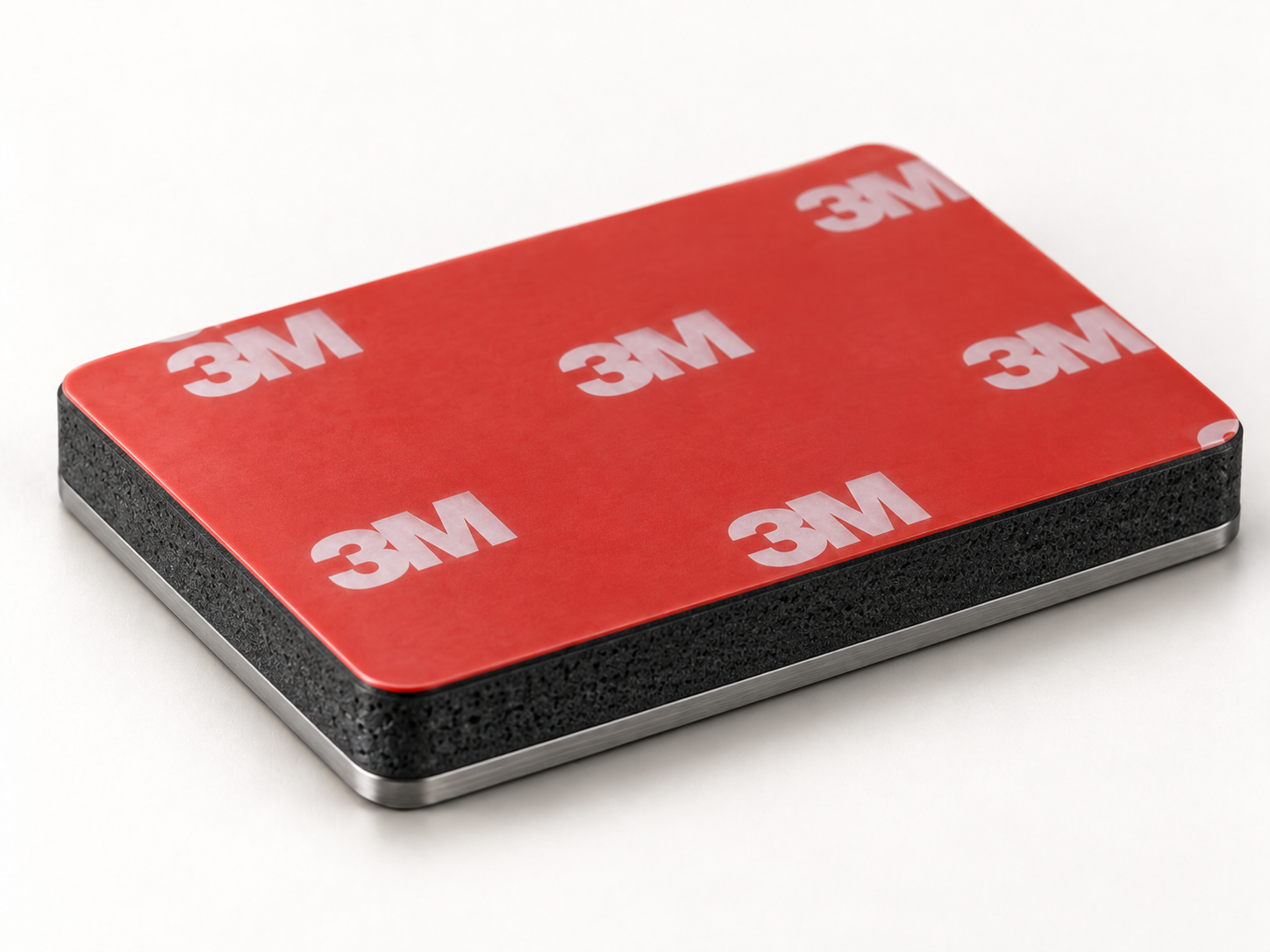

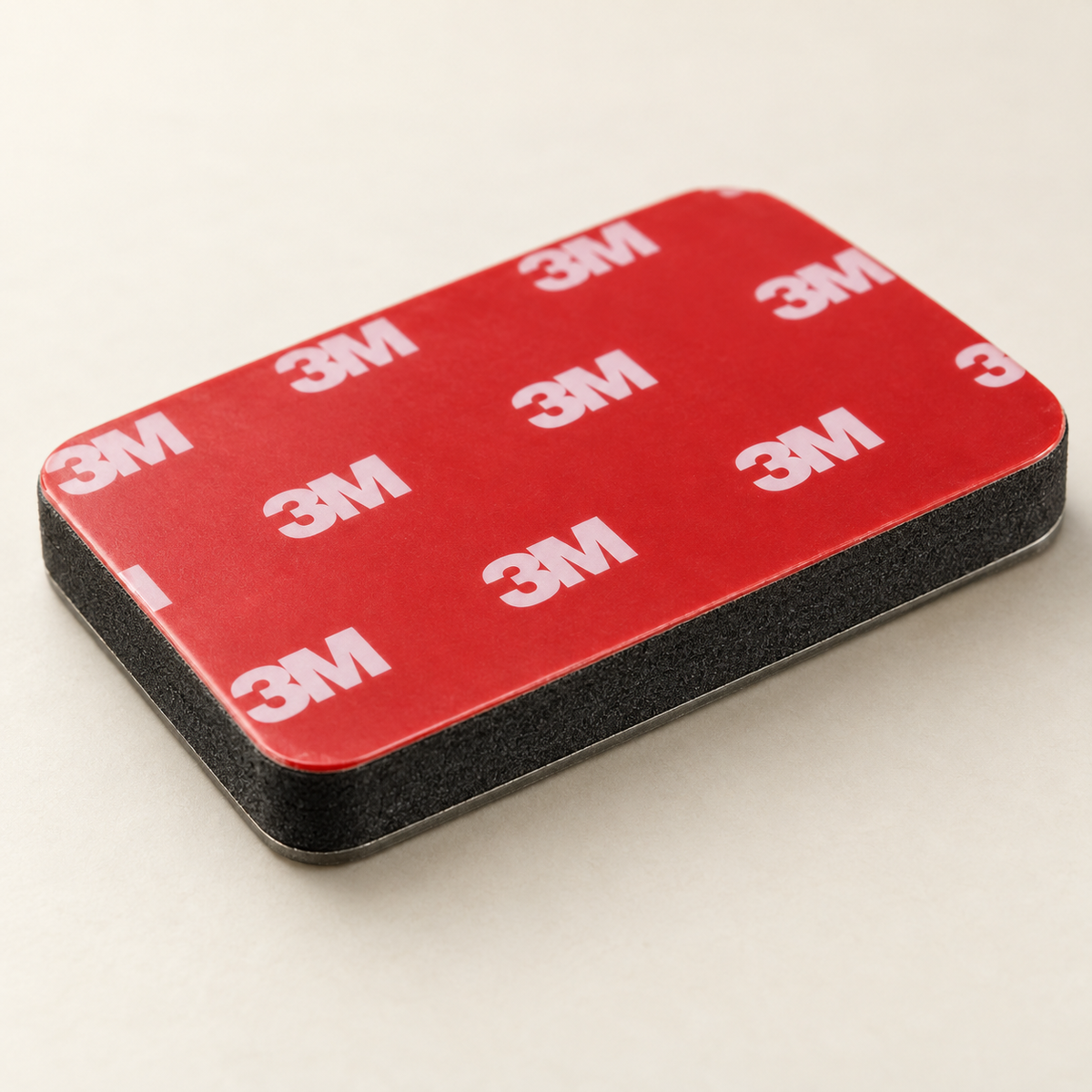

May require foam adhesive or mechanical attachment.
LOAD DIRECTION

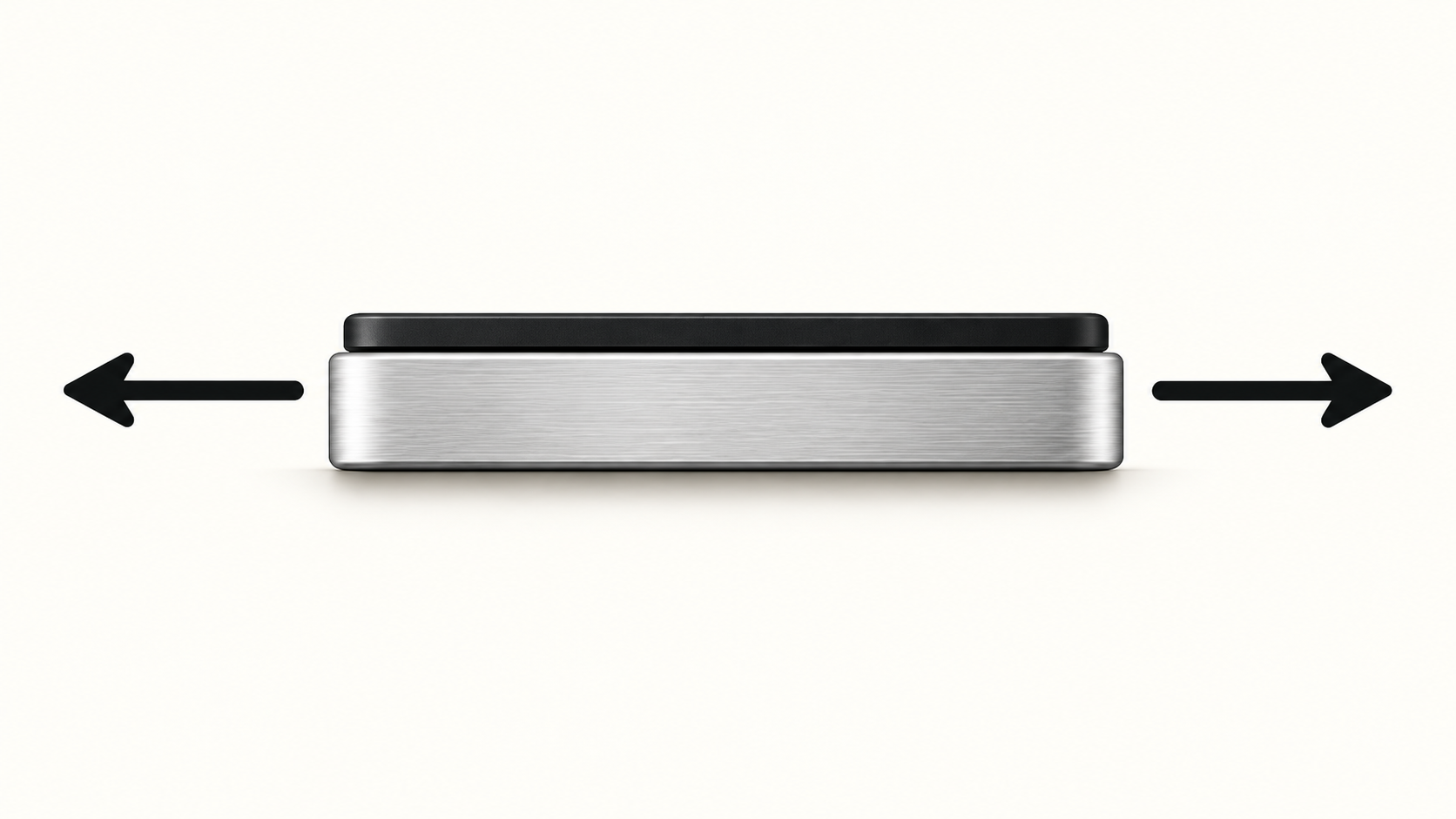

Force acts parallel to the bond line. Adhesives generally perform much better in shear.

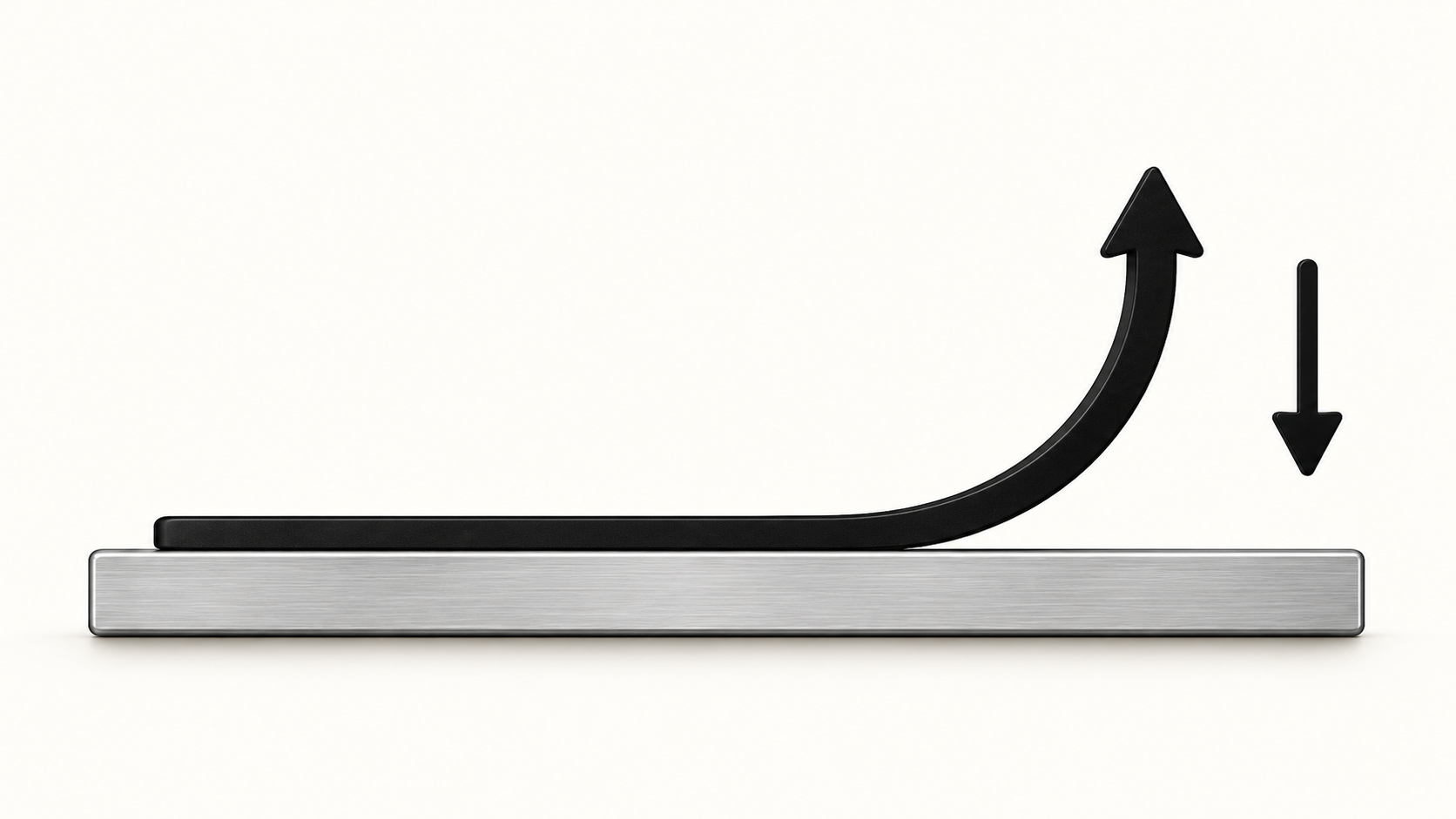

Force lifts an edge away from the substrate. Much more demanding. Badge size, edge geometry, and placement all affect peel strength.
ENVIRONMENT & USE
High temperatures can affect adhesive performance and increase material movement.
Low temperatures can affect performance.
Exposure can weaken adhesive or lead to corrosion.
Cleaners and chemicals can break down adhesives.
Can degrade adhesives over time.
May require a stronger adhesive or mechanical attachment.
Repeated handling can loosen the part.
Requires a system rated for long term exposure.
ATTACHMENT CONSIDERATIONS
The mounting surface often eliminates unsuitable attachment methods early. From there, access, surface condition, geometry, service, load, environment, and assembly requirements narrow the field.

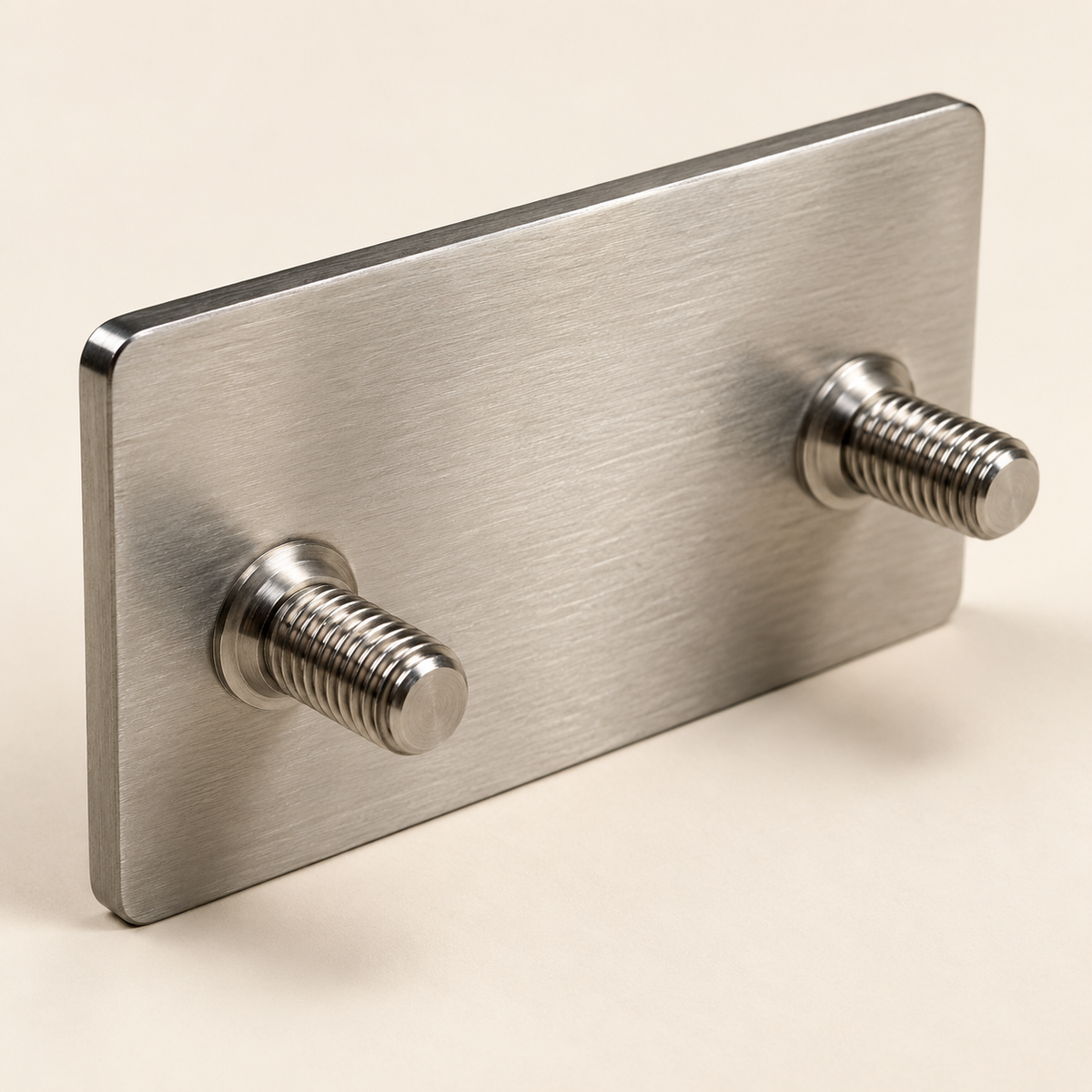

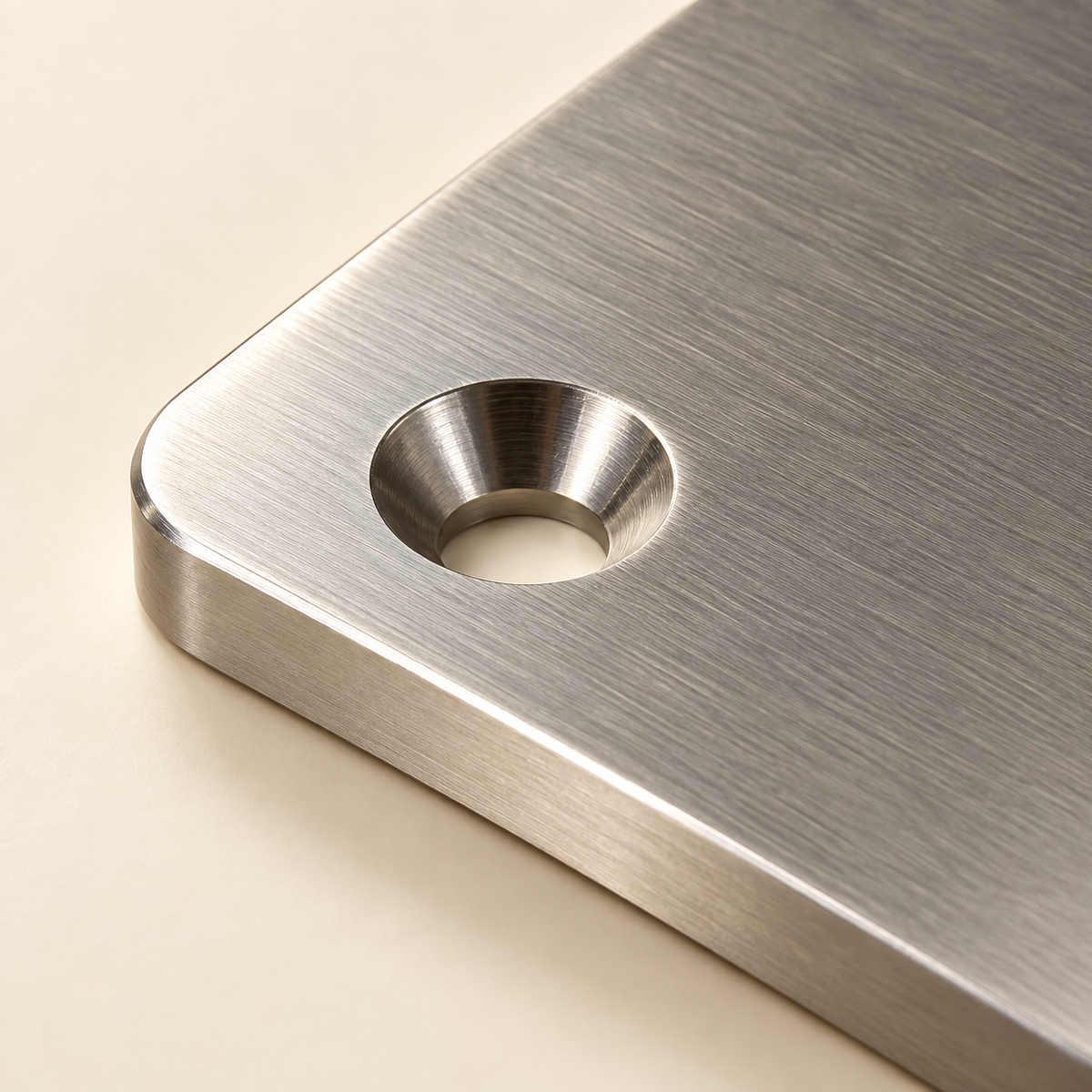

Can you reach behind the mounting surface? Rear access allows studs with retainers, through-bolts, and other rear-fastened methods. When rear access is unavailable, adhesive, blind fasteners, or other front-access methods may be more practical.

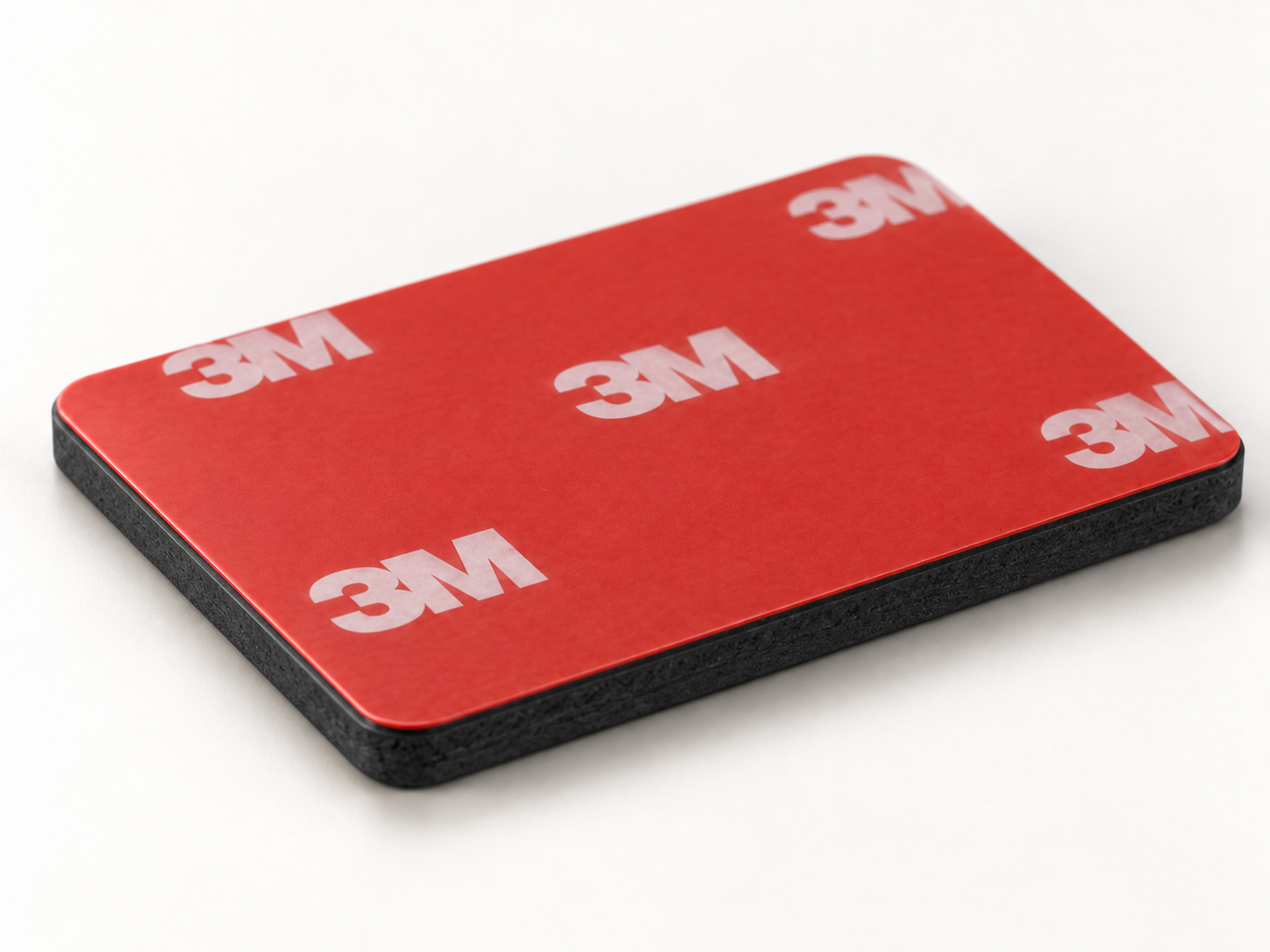

Painted metal, plastics, glass, powder-coated surfaces, and textured surfaces can bond differently. Material, finish, texture, and surface energy help determine adhesive compatibility and whether mechanical attachment should be considered.
Adhesive performance depends on the actual receiving surface. Oils, dust, mold-release residue, coatings, and other contamination can interfere with bonding, while some substrates may require additional preparation or primer.
Flat and contoured surfaces do not mount the same way. Curvature affects adhesive contact, part stiffness, and whether the component should be formed to match the receiving surface.
Should the part remain for the life of the product or come off for service? Removal can affect reusability, leave adhesive residue, or require access to mechanical fasteners, so replacement and maintenance should be considered before the attachment is specified.
Part weight and mounting orientation affect how forces act on the attachment. This can change whether adhesive alone is appropriate or whether mechanical retention should share the load.
Temperature, moisture, cleaning chemicals, UV, and vibration can all affect attachment performance. Installation temperature and long-term service temperature should be considered separately, particularly with adhesive systems.
Hand-applied or automated, one piece or fifty thousand, assembly requirements can change which attachment method is practical. Sequence, installation time, equipment, and production volume should all be considered.
THE SUBSTRATE CHANGES THE ANSWER
Adhesive selection is not based on the badge alone. It is based on the badge and the surface it is bonding to.
The full picture
Material defines the substrate. Manufacturing method defines how the part is formed. Attachment defines how it mounts. The production drawing records the approved combination.
How it is built→Manufacturing Methods
Not every method suits every construction. The methods guide shows which attachments fit which parts.
What is compatible→Compatibility Matrix
Material, method, and attachment together decide feasibility, confirmed in one place.
What gets recorded→Design Drawing Requirements
The adhesive system, stud size, and hole pattern are documented on the drawing, so the first order and every reorder mount the same way.
This page helps you understand and narrow. The matrix confirms what is buildable. The drawing records the final decision.
When in doubt
Adhesion depends on the real surface, its cleaning, its temperature, and how the part is pressed on. When the mount is critical, an approved test fit on the actual surface becomes the reference the production method is measured against.
See the Sample & Approval ProcessFrom first article timing to reorders, freight, and delays, here is what buyers typically need to know before placing an order.
The right method depends on the receiving surface, rear access, expected loads, environment, service requirements, and finished position. Some applications also benefit from a combination of adhesive and mechanical retention.
Yes. Surface material, texture, coatings, surface energy, and contamination can all influence adhesive performance. The adhesive should be selected for the actual receiving surface rather than the component alone.
Generally, yes. The receiving surface should be clean, dry, and free of oils, dust, mold release, or other contamination. Some substrates may also benefit from additional surface preparation or primer.
Yes. Application temperature and long term service temperature are separate considerations. An adhesive may require a particular installation range even when the completed assembly will see different operating temperatures.
Yes, but curvature should be considered during component and attachment design. Part geometry, stiffness, and adhesive contact may need to be matched to the receiving contour.
Typically, adhesive backed components should not be assumed to be reusable after removal. Removal can also leave residue or affect certain receiving surfaces, so service and replacement requirements should be considered during attachment selection.

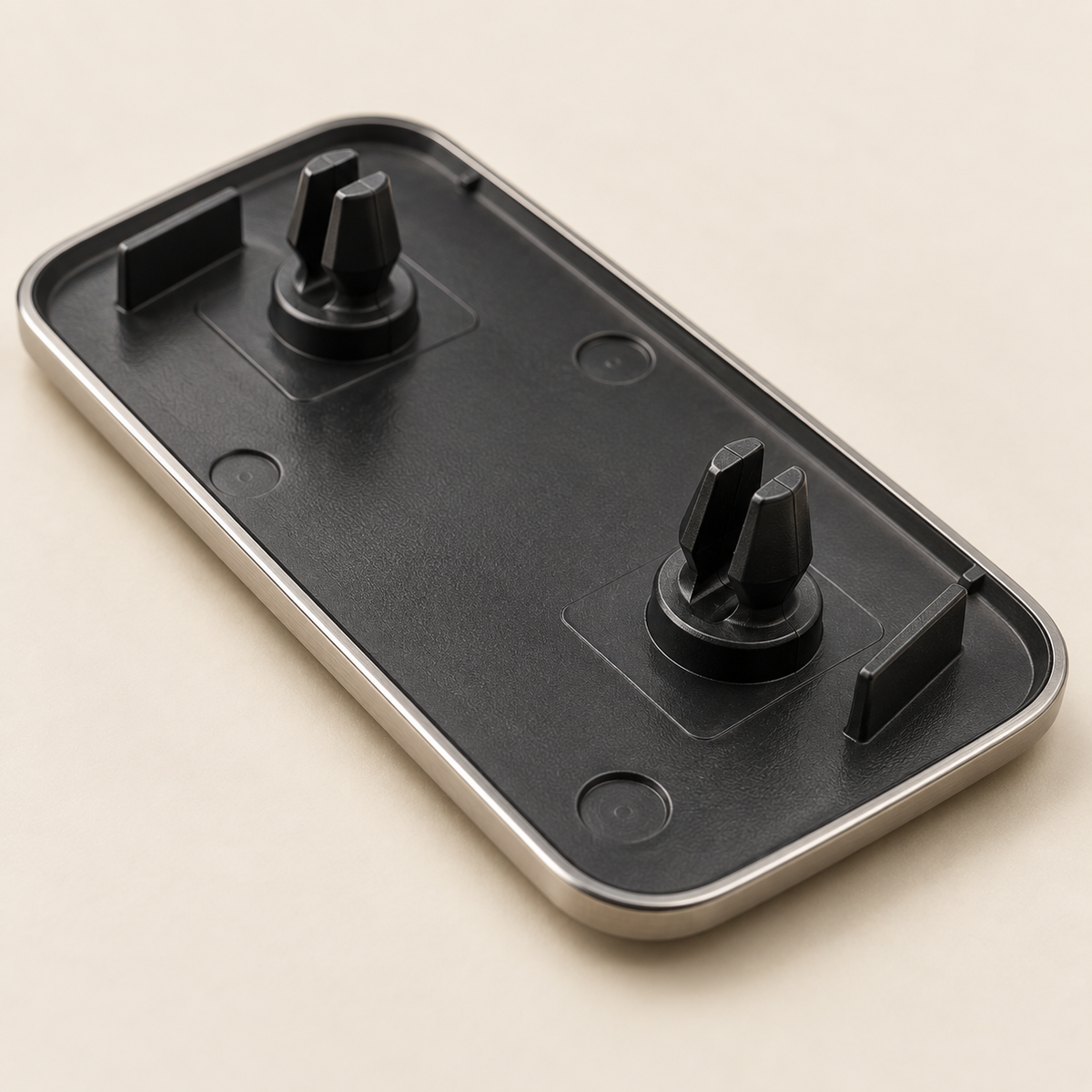

Yes. Holes, pins, studs, or other locating features can be combined with adhesive where the application benefits from additional alignment, retention, vibration resistance, or installation security.
Where applicable, drawings should define the attachment type, adhesive requirements, stud or pin locations, hole geometry, spacing, relevant tolerances, and the relationship of those features to the component's locating references.

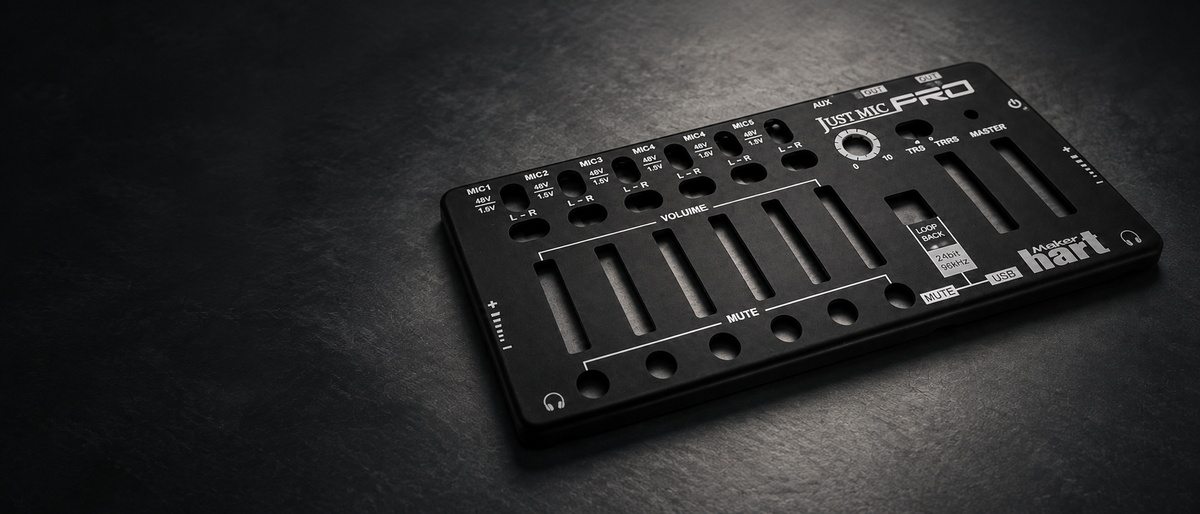

Badges, nameplates, labels, overlays, trim, faceplates, and functional components place different demands on attachment. The right method depends on the part, the receiving surface, the environment, and how the finished assembly will be used.
Send us the part, mounting surface, access conditions, environment, and expected loads. We will narrow the attachment options and recommend the approach that fits the application, assembly process, and permanence required.
