LET THE PART CHOOSE
The right manufacturing method follows the part. Form, thickness, material, and order volume narrow the viable options before finish, attachment, tolerance, and operating requirements refine the final choice.
Flat graphics, shallow raised details, deep relief, and fully three dimensional forms require different processes. The amount of depth and the number of levels quickly narrow which methods for the design.
Narrows the field by shape
Thin sheet parts can often be etched, printed, stamped, or formed. Thicker or solid components may need to be cast, forged, molded, or machined.
Separates sheet from solid
The required material can rule methods in or out. Plastics generally point toward molding, while metals may be etched, stamped, cast, forged, or machined depending on the alloy and part geometry.
Rules methods in or out
Quantity determines whether upfront tooling makes economic sense. Lower quantities generally favor tooling light methods, while repeat or higher volume production can spread tooling cost across more parts.
Sets the tooling tradeoff
Each manufacturing method creates a different balance of form, detail, material, tooling, and unit cost. The right process depends on what the part needs to do and how it needs to look.
WHAT RUNS IN WHAT
Material can eliminate manufacturing options before design review begins. Some methods work across many alloys, while others depend on a specific metal or polymer family. Use this as a starting point; final compatibility depends on the material grade, thickness, geometry, finish, and application.
FORM & DETAIL

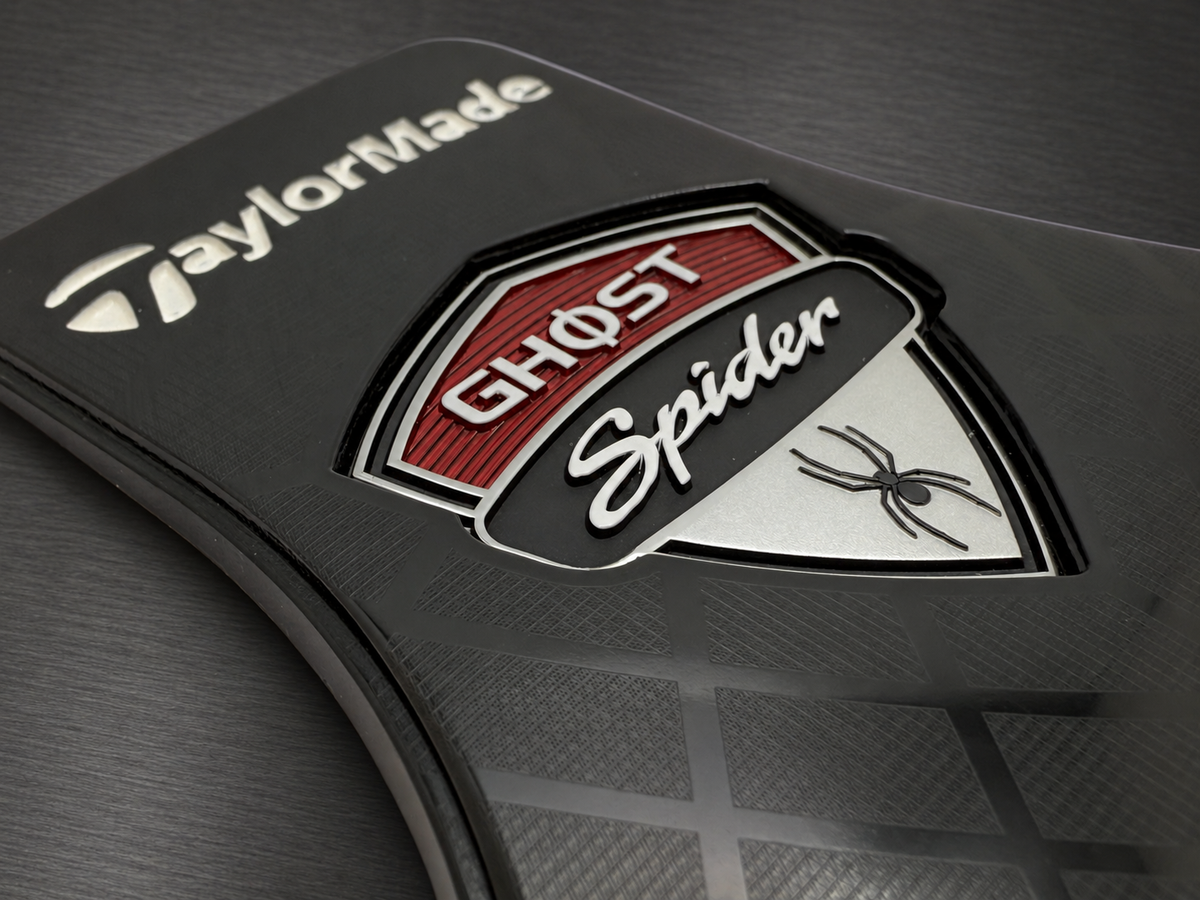

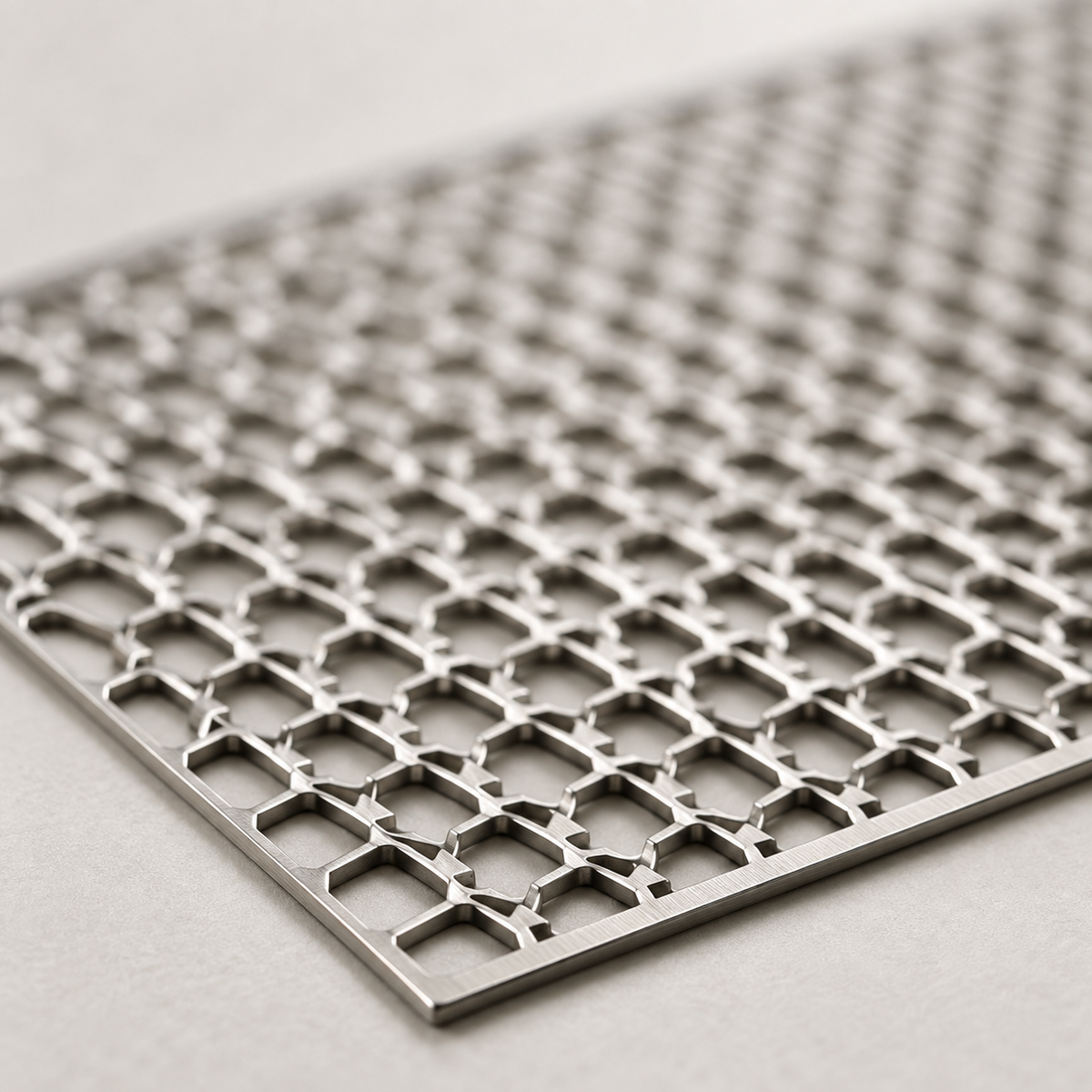

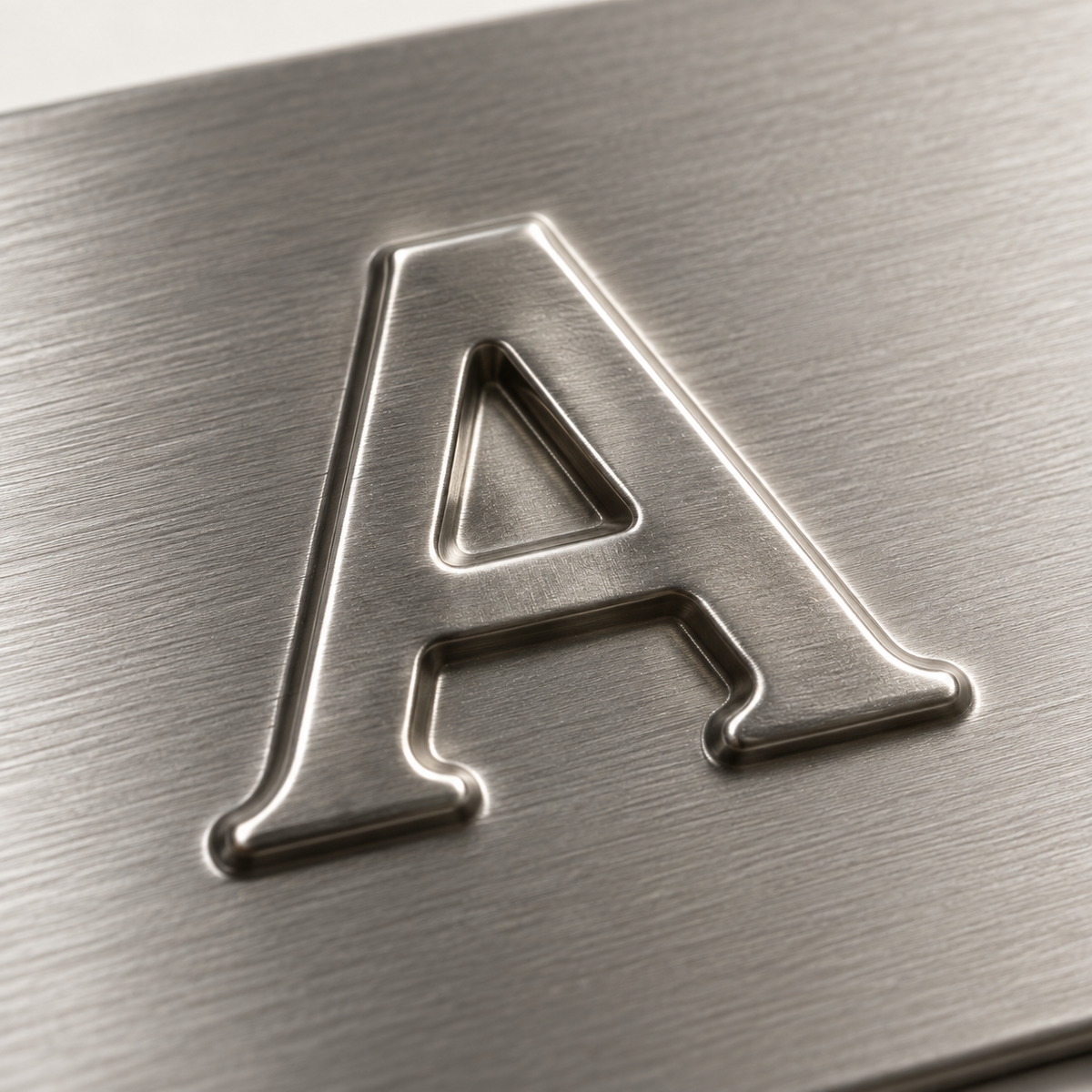

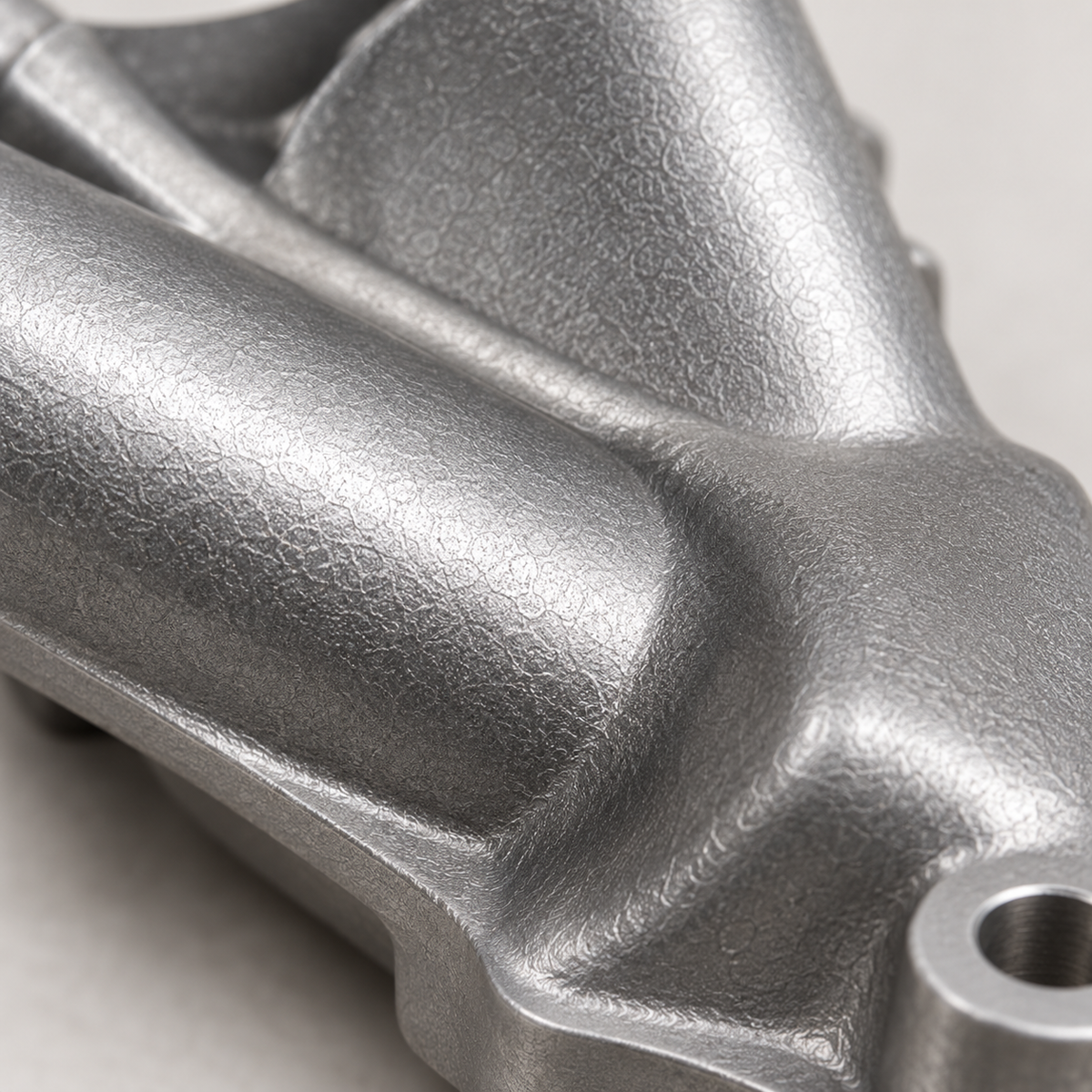

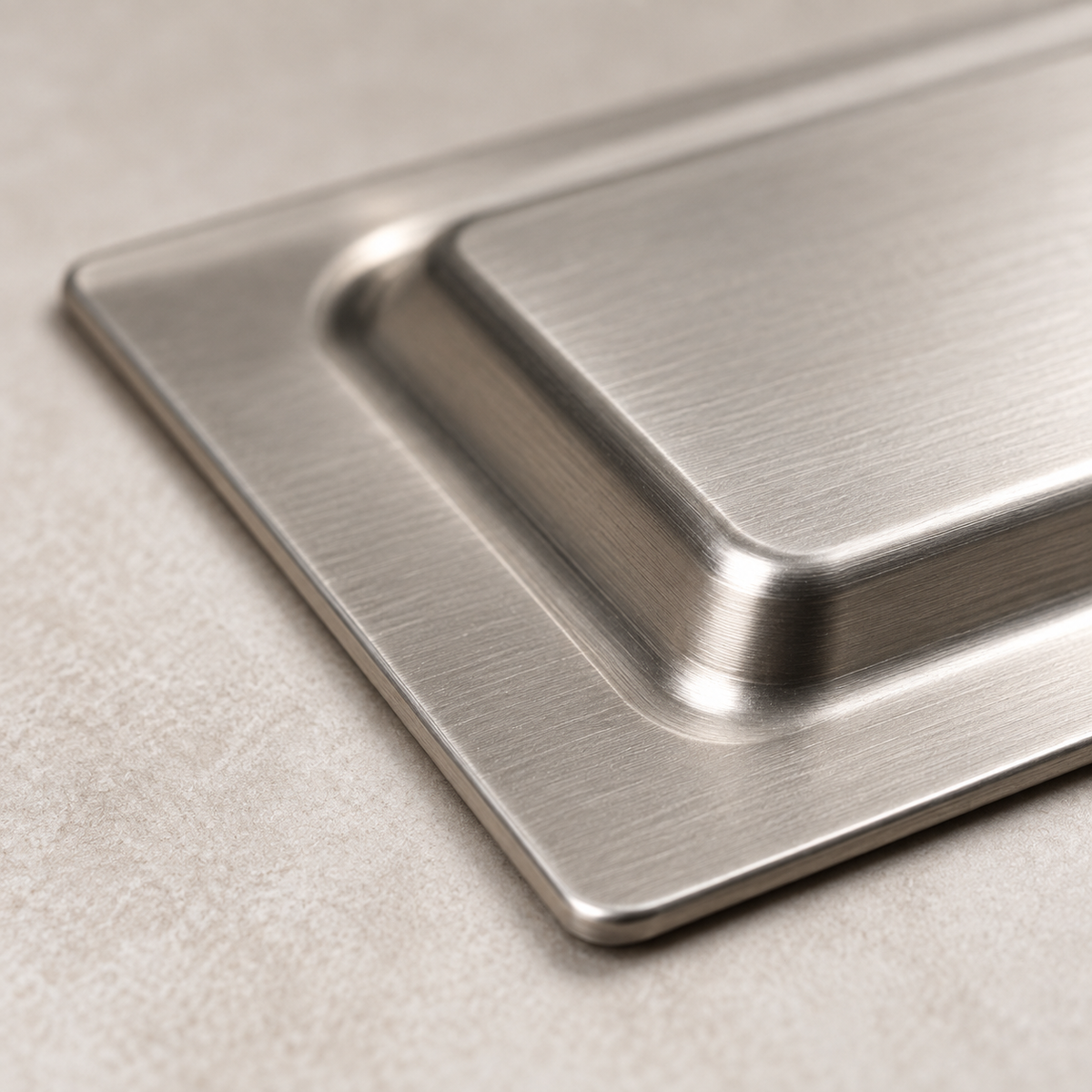

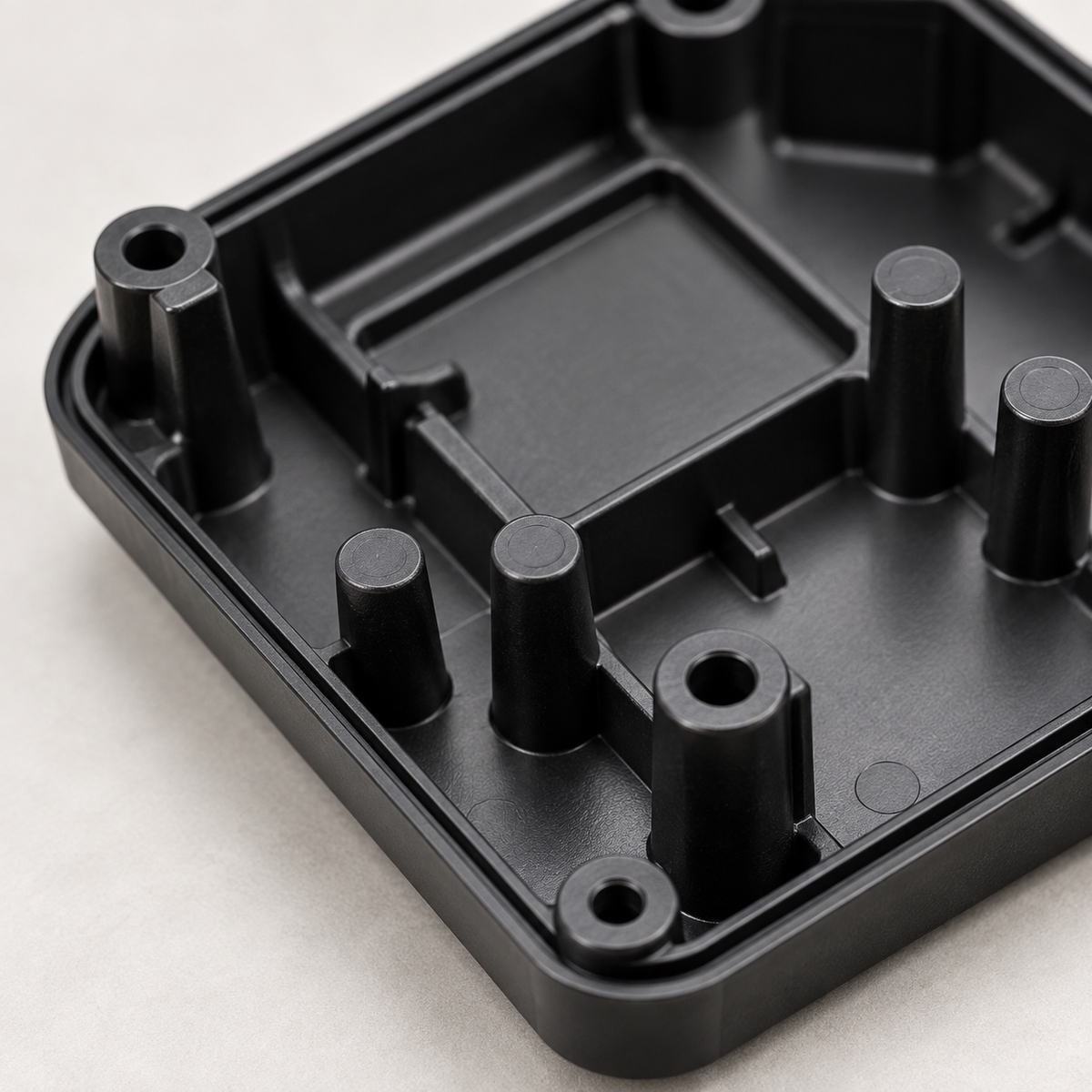

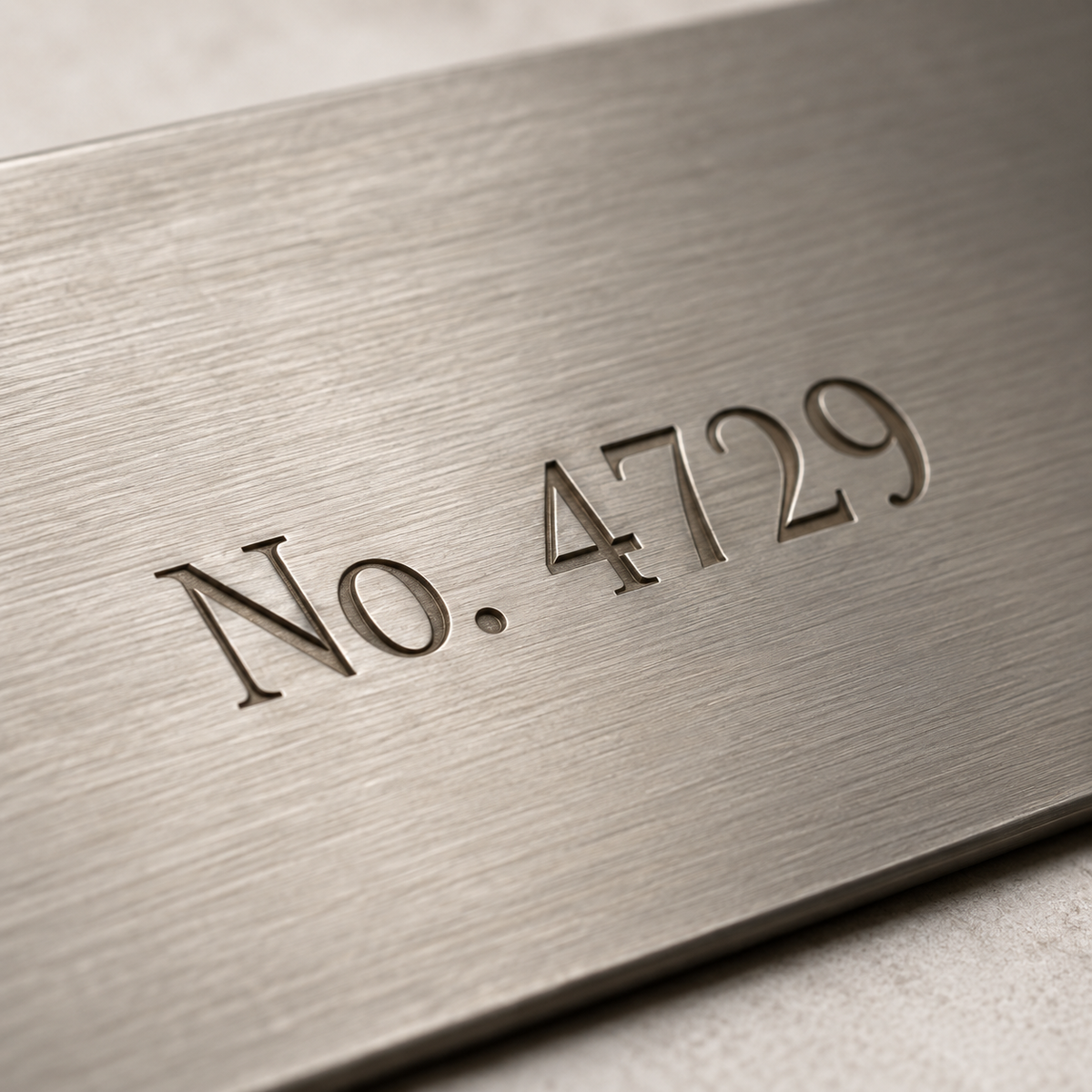

Not every process creates dimension the same way. Some are best for nearly flat graphics and fine recessed detail. Others can produce substantial relief, formed geometry, or fully three dimensional parts.
THE OTHER HALF OF THE DECISION
Two parts with the same geometry may require different manufacturing methods at different quantities. Tooling often determines the crossover: its upfront cost can be spread across repeat production or avoided when demand is lower or uncertain.

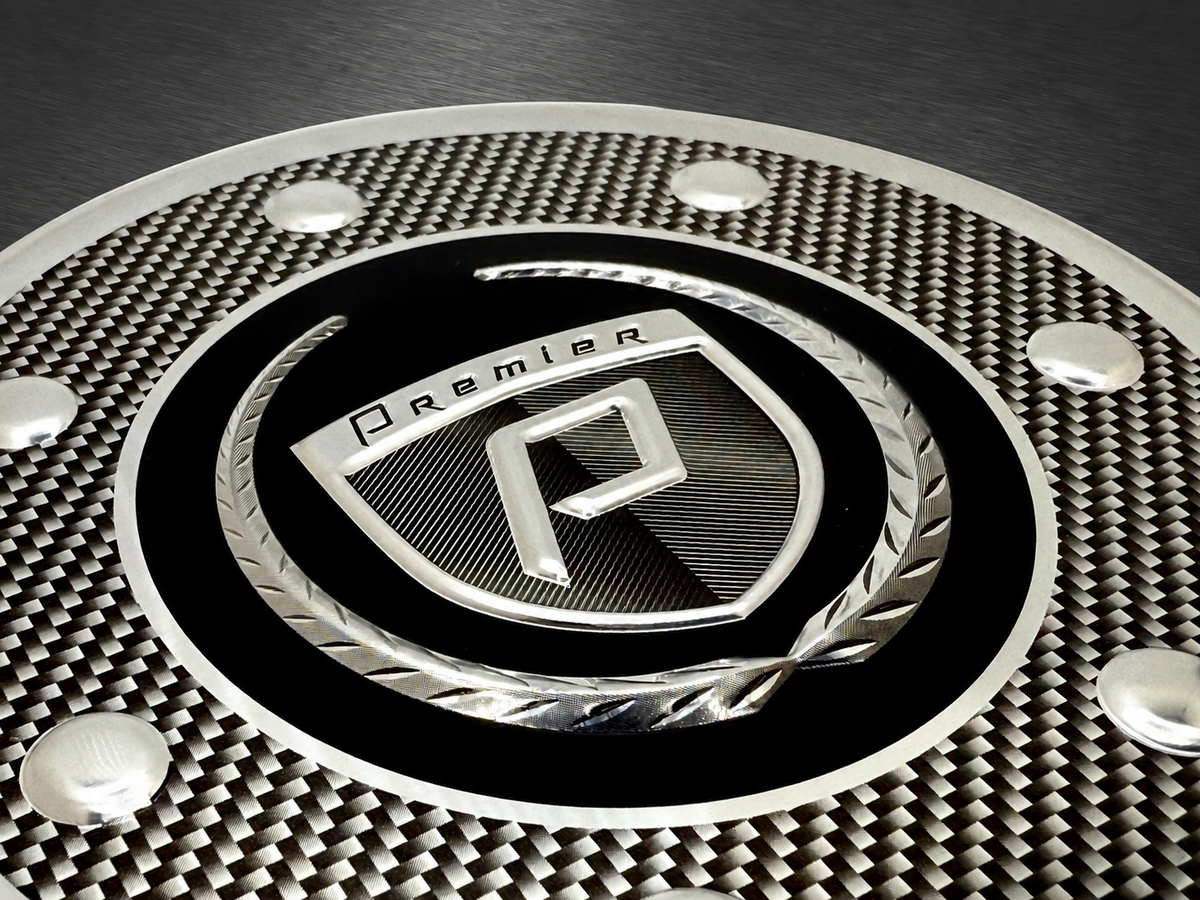

TOOLING-HEAVY

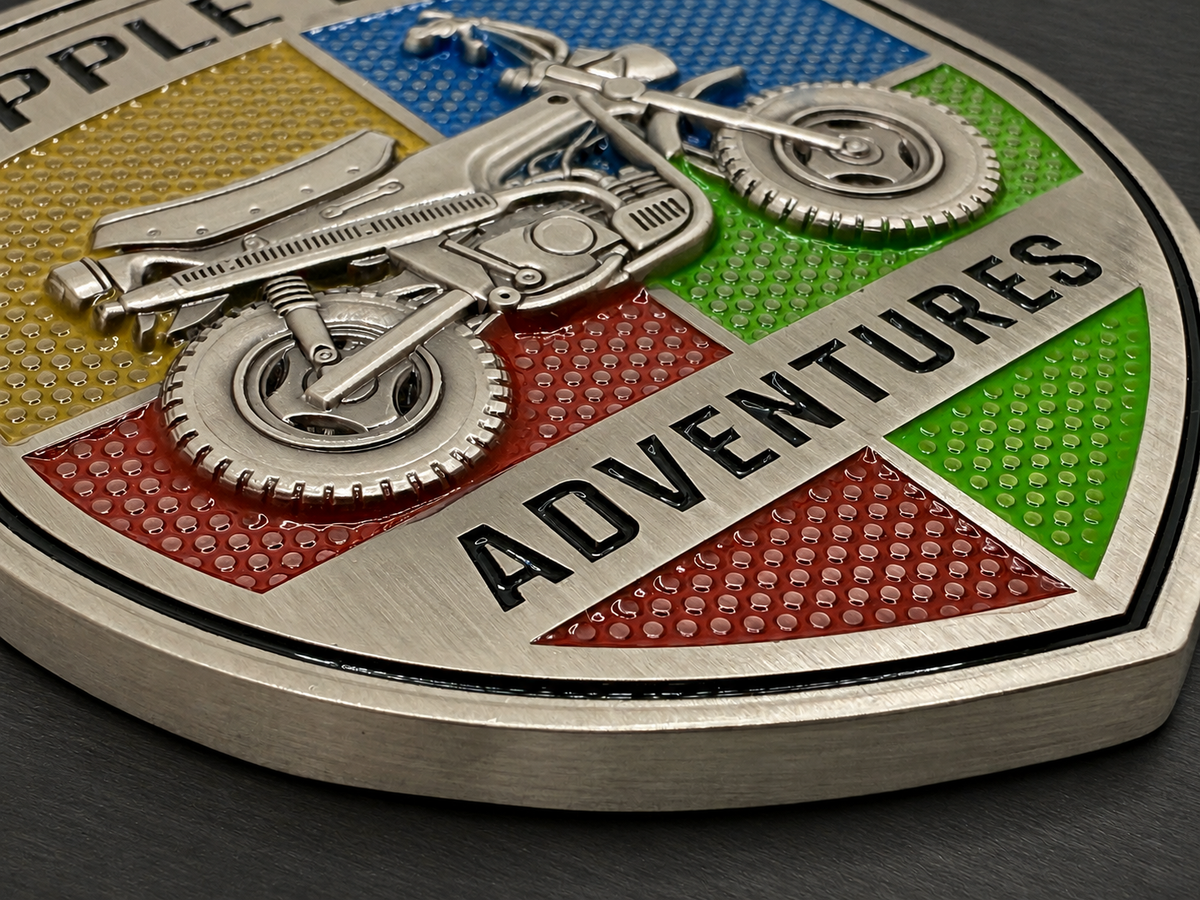

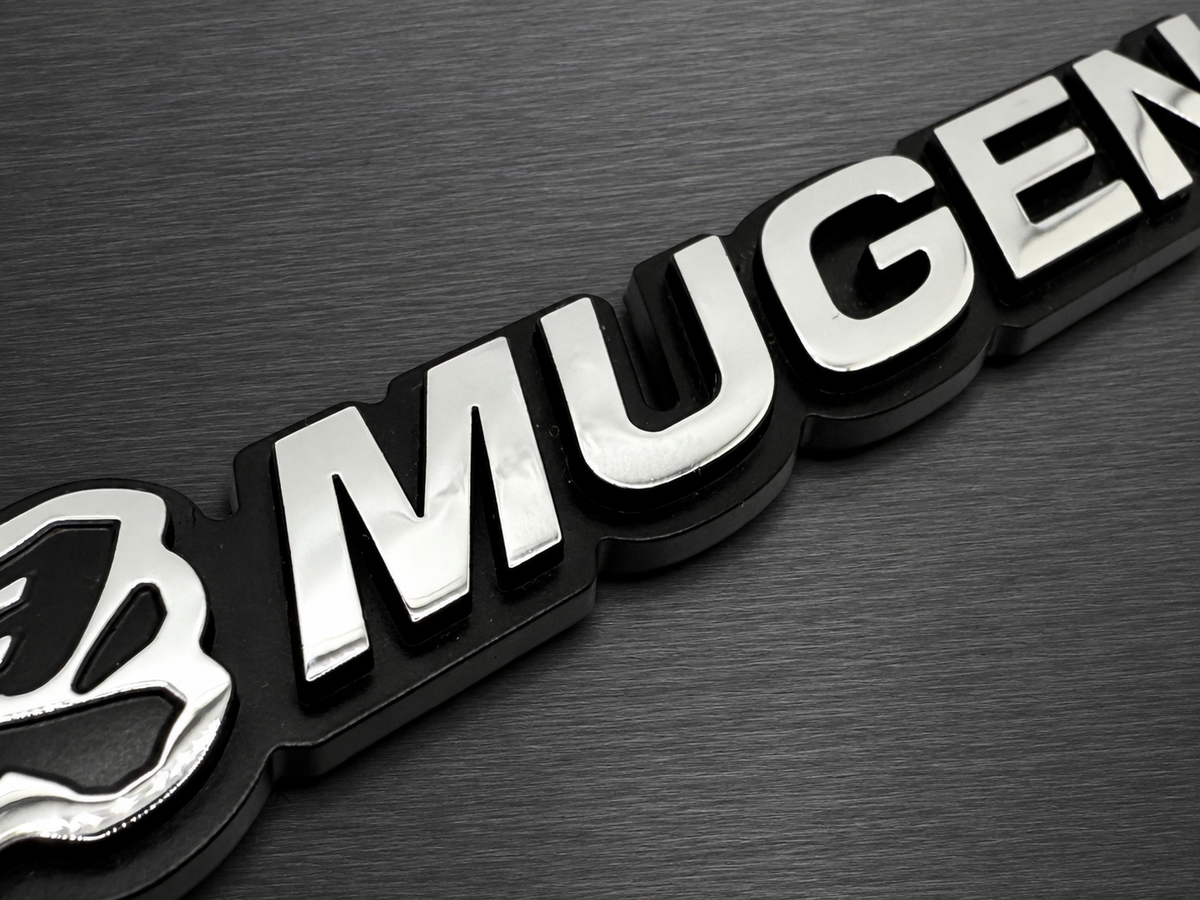

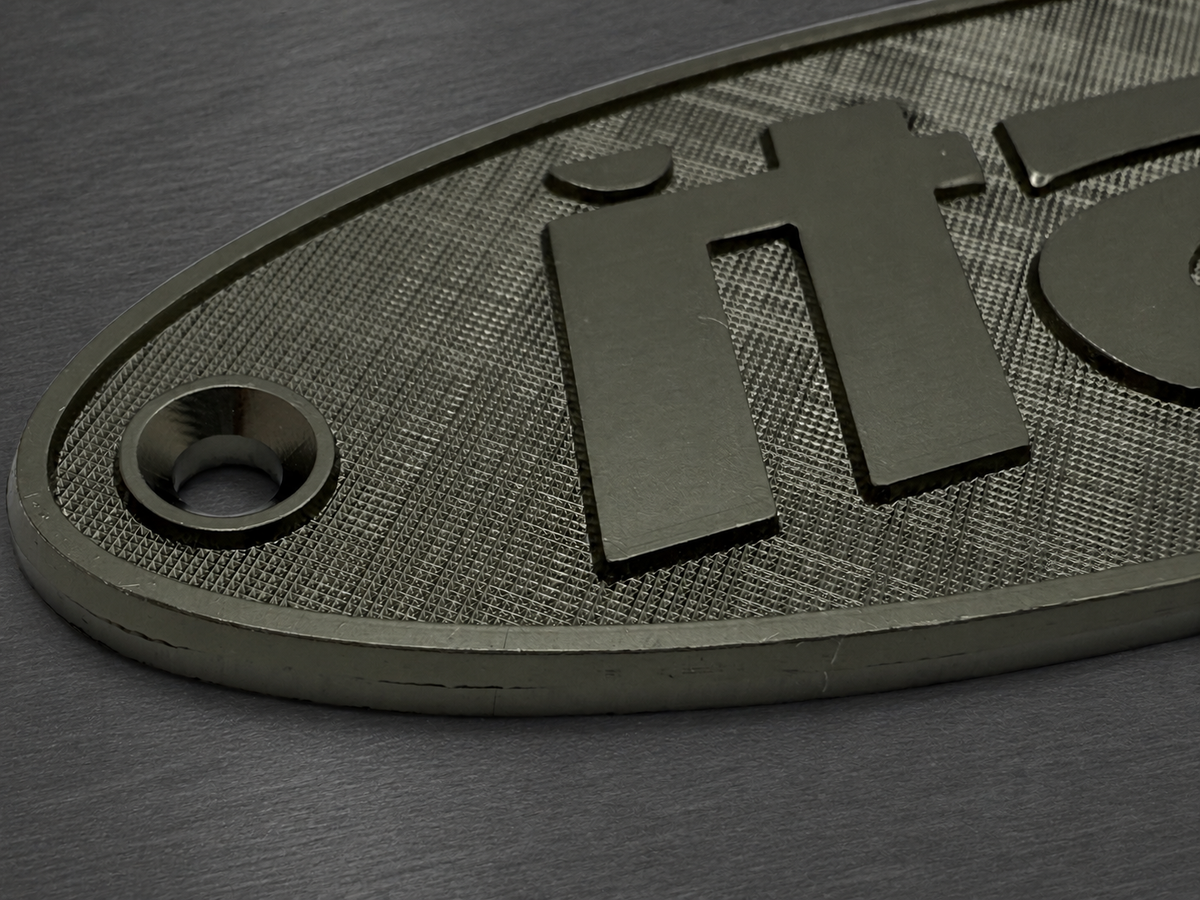

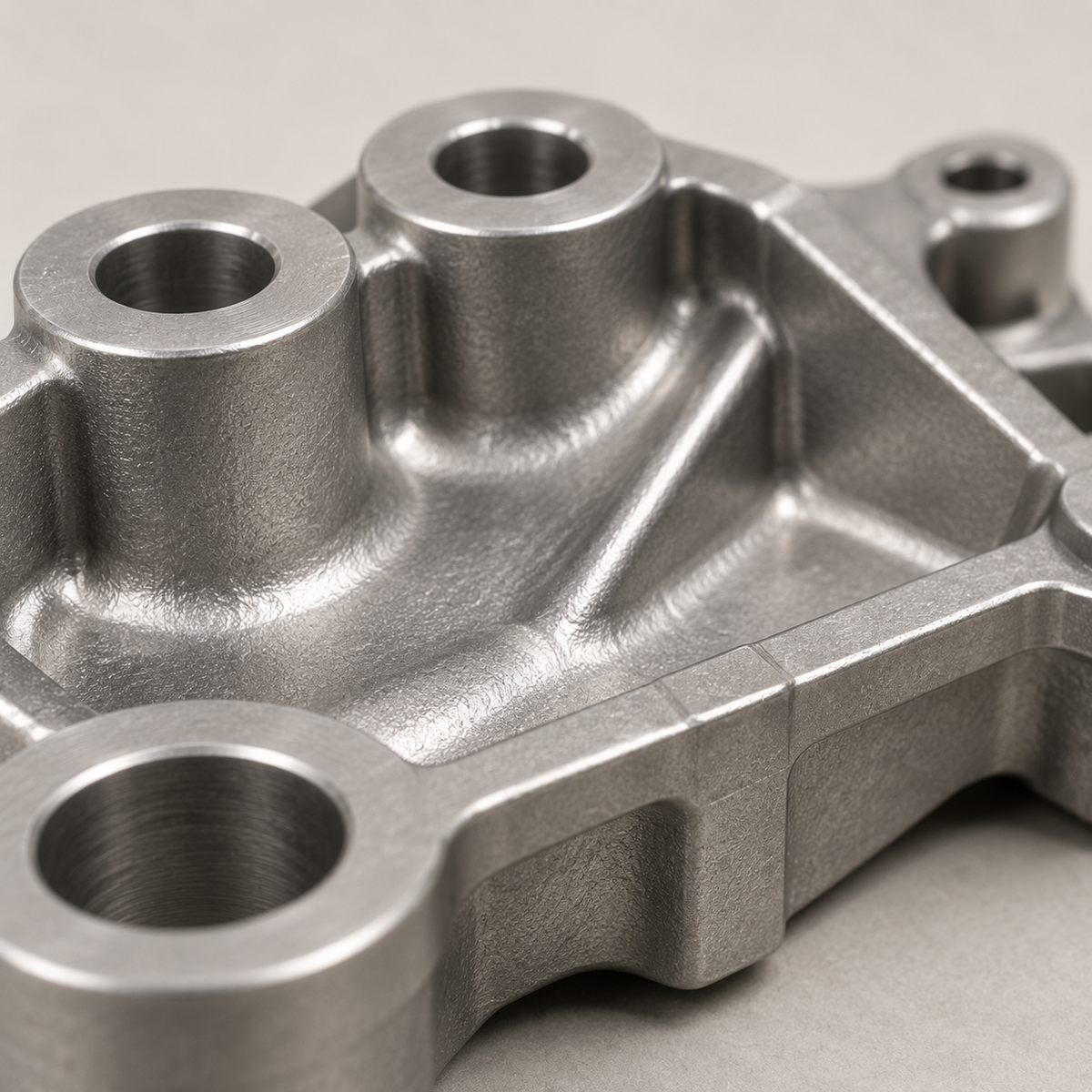

Methods such as die casting, injection molding, forging, and matched-die forming require dedicated production tooling. The upfront investment is spread across the production run, typically improving unit economics as volume increases. At lower quantities, tooling can outweigh those savings.

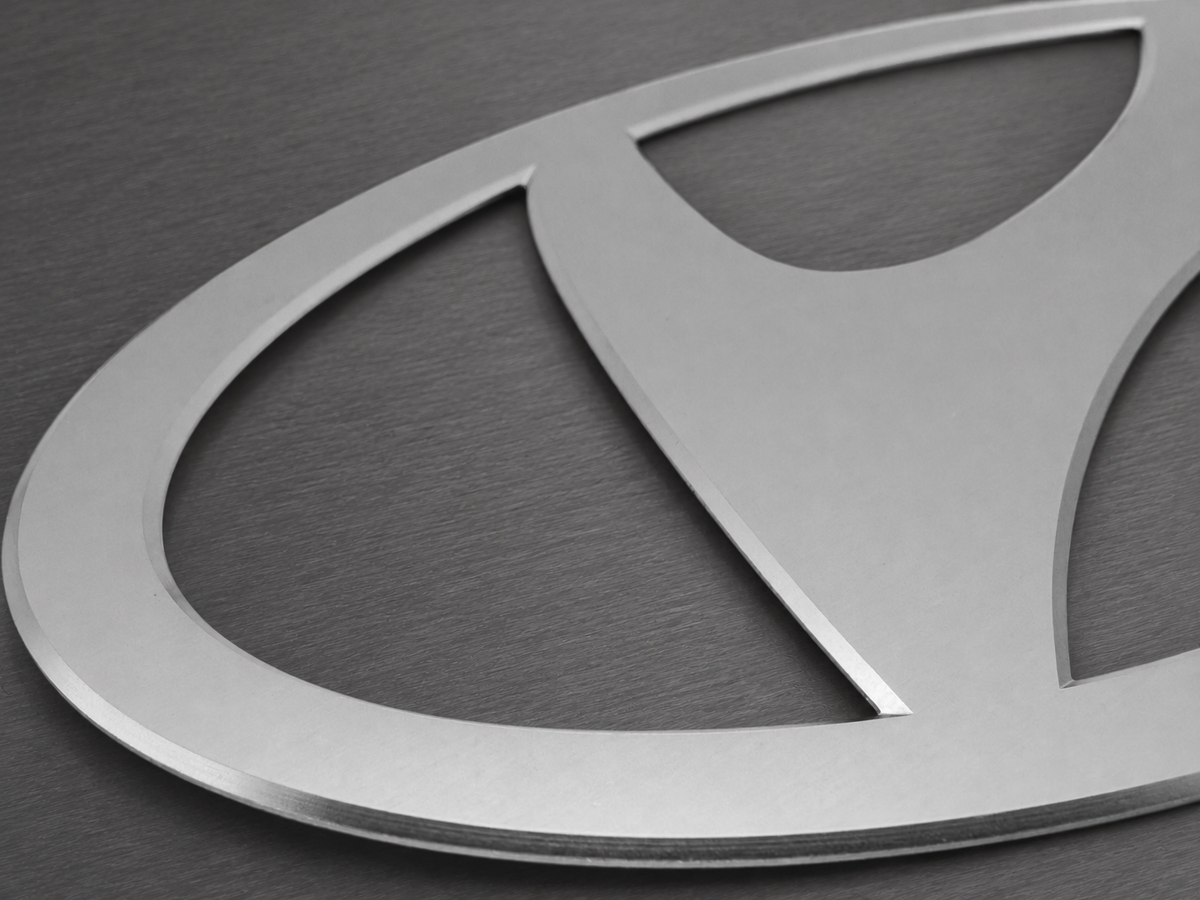

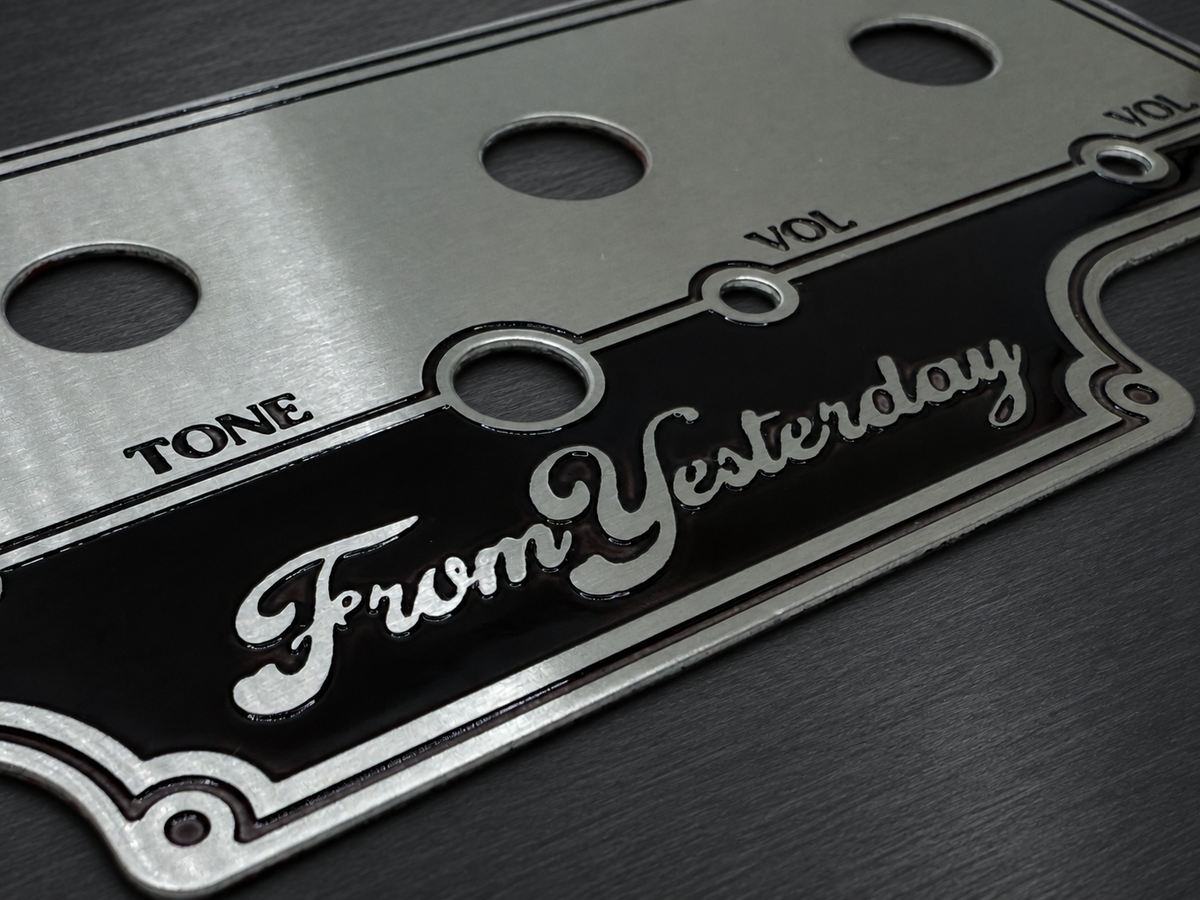

TOOLING-LIGHT

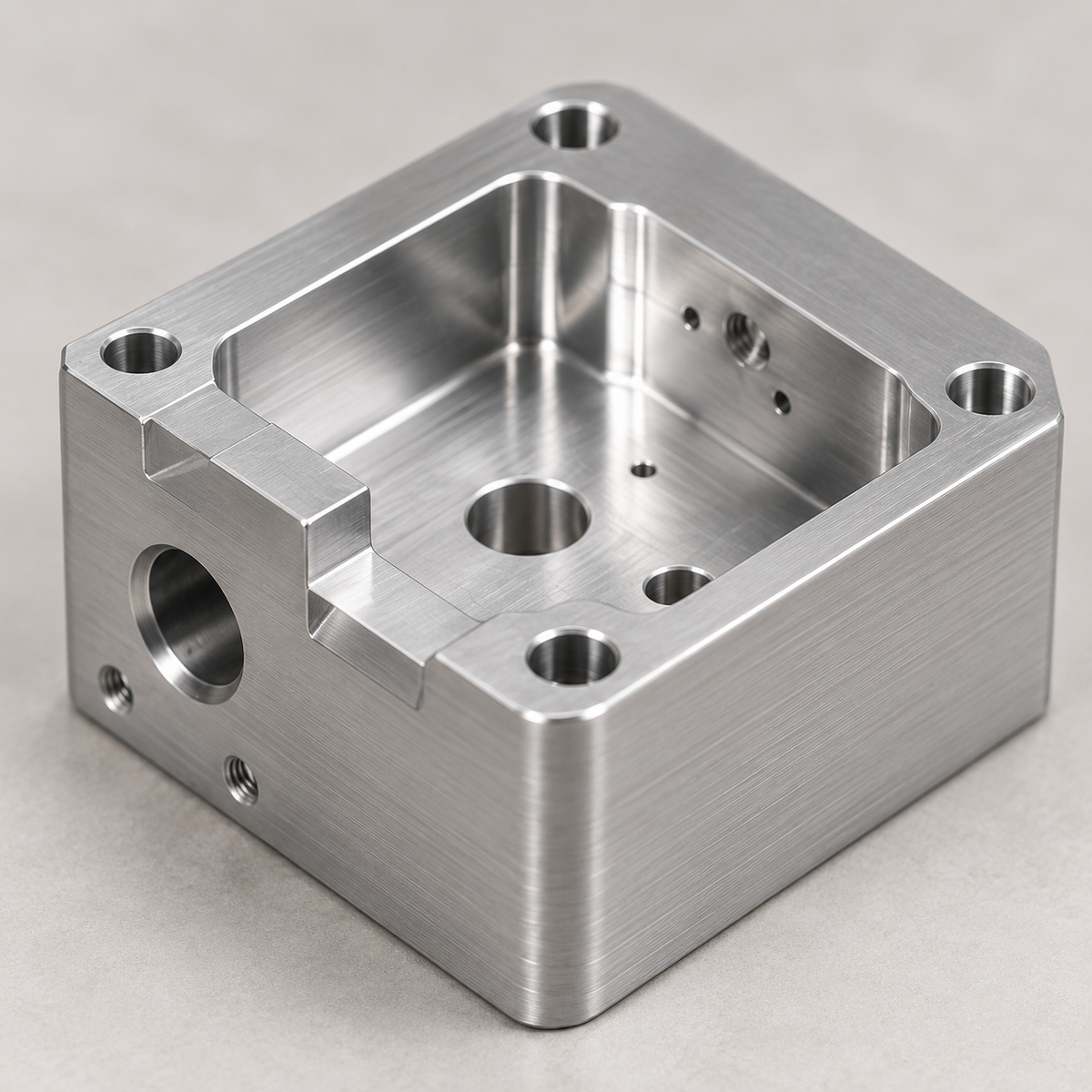

Etching, electroforming, and CNC machining can be practical when quantities are lower, demand is uncertain, or the design is still being refined. They generally avoid the heavier production tooling associated with casting or molding, although process economics still depend on geometry, material, and detail.
The crossover depends on geometry, material, tolerances, finishing, and expected volume. Share the initial quantity and expected reorder demand, and we can compare tooling and unit economics across the viable methods.
FINAL SELECTION
Once the general method family is clear, attachment, appearance, tolerance, and operating conditions narrow the process to the one that best fits the part.
| FACTOR | KEY QUESTION | PROCESS IMPLICATION |
|---|---|---|
| Built In Attachment |
KEY QUESTION
Must tabs, studs, bosses, or threads be formed into the part? |
PROCESS IMPLICATION
Casting, forging, and molding can create attachments as part of the component. Load bearing features require additional review. |

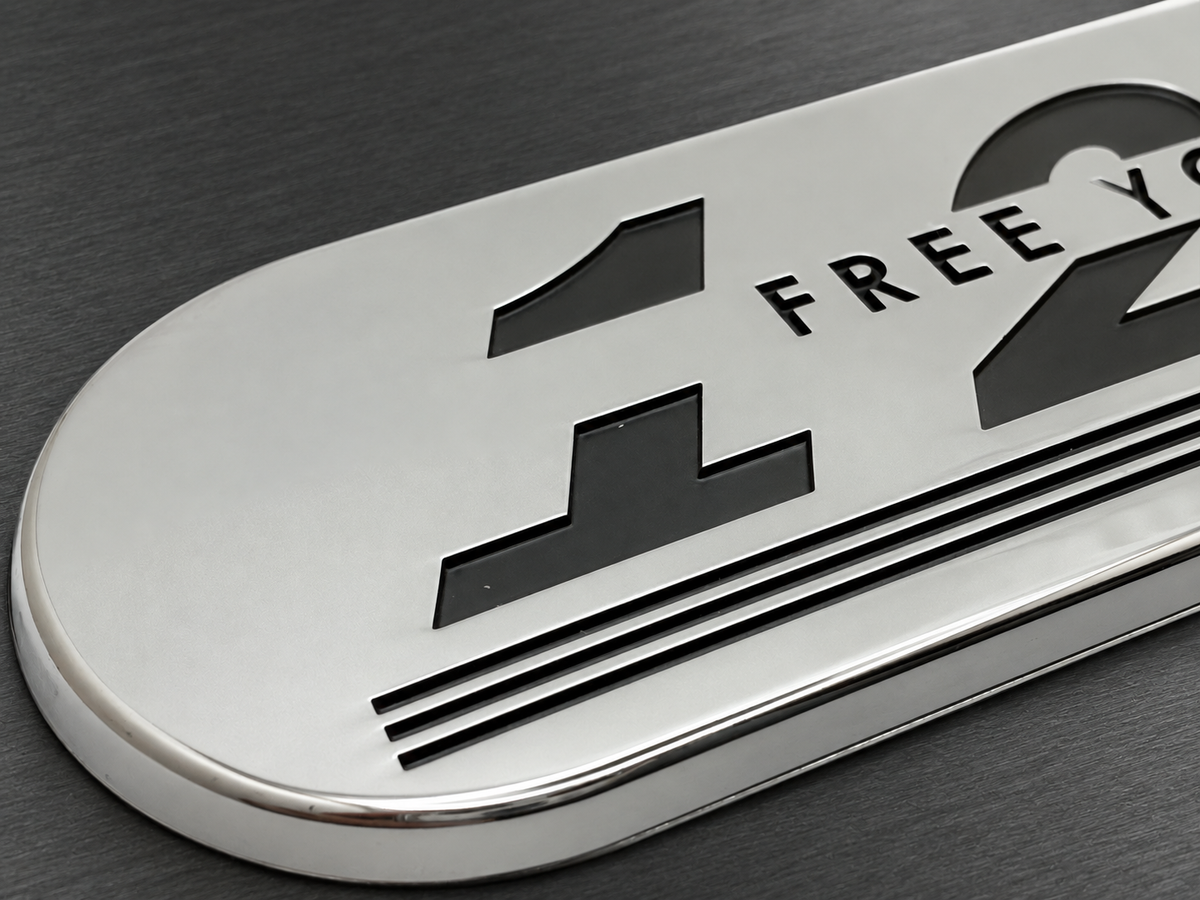

| Color & Decoration |
KEY QUESTION
How will color, graphics, and finishes be applied? |
PROCESS IMPLICATION
Flat surfaces support printing. Formed metal may use plating or anodizing. Molded parts can use molded in color or secondary decoration. |
| Detail & Tolerance |
KEY QUESTION
What is the smallest detail and which dimensions require the closest control? |
PROCESS IMPLICATION
Electroforming reproduces the finest surface detail. Machining offers tighter dimensional control. Cast, forged, and molded detail depends on geometry, material, and tooling. |
| Environment & Durability |
KEY QUESTION
Must the part withstand heat, UV, moisture, chemicals, abrasion, or repeated handling? |
PROCESS IMPLICATION
The operating environment narrows the material, finish, process, and protective layer options. |
