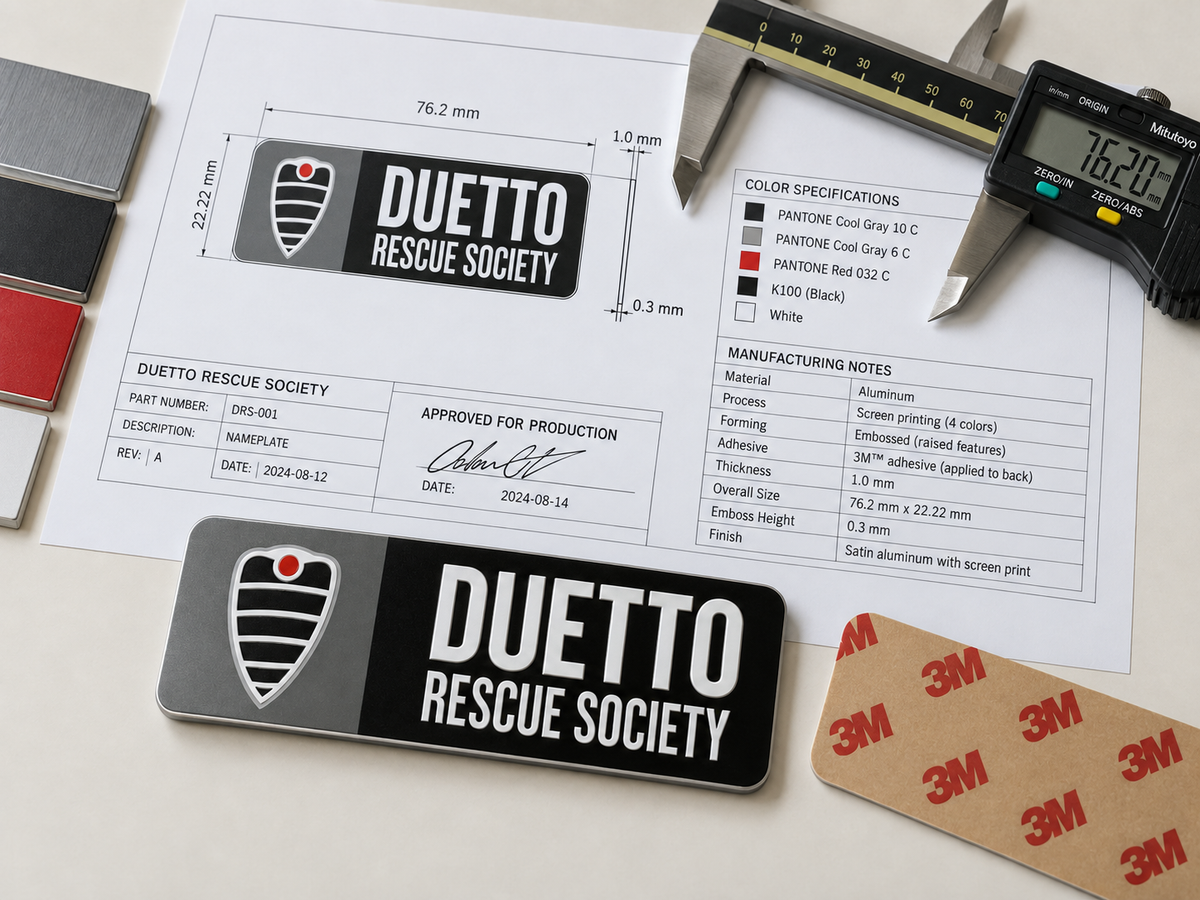

Component Specification Template
Define the part before production begins.
Organize the dimensions, materials, finishes, attachment requirements, environment, quantities, and approval criteria needed to evaluate a custom component.
Project Definition
One Document. The Inputs That Define the Part.
The template helps you provide the key information we need to evaluate your project and recommend the best approach.
| Specification Area | What Gets Defined |
|---|---|
| Part Identification | Part name, project, drawing number, revision |
| Geometry | Length, width, thickness, radii, holes, relief, tolerances |
| Material | Aluminum, stainless, brass, zinc, polymer, other |
| Finish | Anodized, plated, painted, brushed, polished, textured |
| Graphics | Logos, text, colors, artwork references |
| Attachment | Adhesive, studs, pins, holes, clips, magnetic, other |
| Receiving Surface | Material, coating, texture, curvature |
| Environment | Indoor/outdoor, chemicals, heat, moisture, UV, abrasion |
| Production | Order quantity, annual volume, packaging |
| Approval | Samples, first article, drawing approval, appearance requirements |
The Template
Built Around the Questions That Affect Feasibility.
The template organizes the information needed to evaluate the part, its application, and the requirements production must ultimately satisfy.
01
Part Definition
Identify exactly what component is being sourced and which revision applies.
02
Construction Requirements
Capture the materials, dimensions, finishes, graphics, and attachment method.
03
Application Conditions
Record what the component mounts to and what it must withstand.
04
Production Requirements
Define quantities, packaging, sample expectations, and timing.
Document Control
The Specification Starts the Project. The Approved Drawing Controls Production.
The template organizes the requirements needed to evaluate the project. Once the construction is established, the approved production drawing records the dimensions, materials, finishes, attachment details, tolerances, and other controlled requirements used for production and reorders.
Supporting Files
Send What You Have.
You do not need every field completed before contacting us. The template is designed to organize what is known and identify what still needs to be resolved.
02
Existing Drawings
2D drawings, CAD references, dimensions, or prior supplier documentation.
03
Photos or Samples
Useful when replacing an existing component or matching current production.
04
Receiving Surface Information
Photos, dimensions, material, coating, texture, or mating geometry.
Example
From Project Requirement to Defined Component.

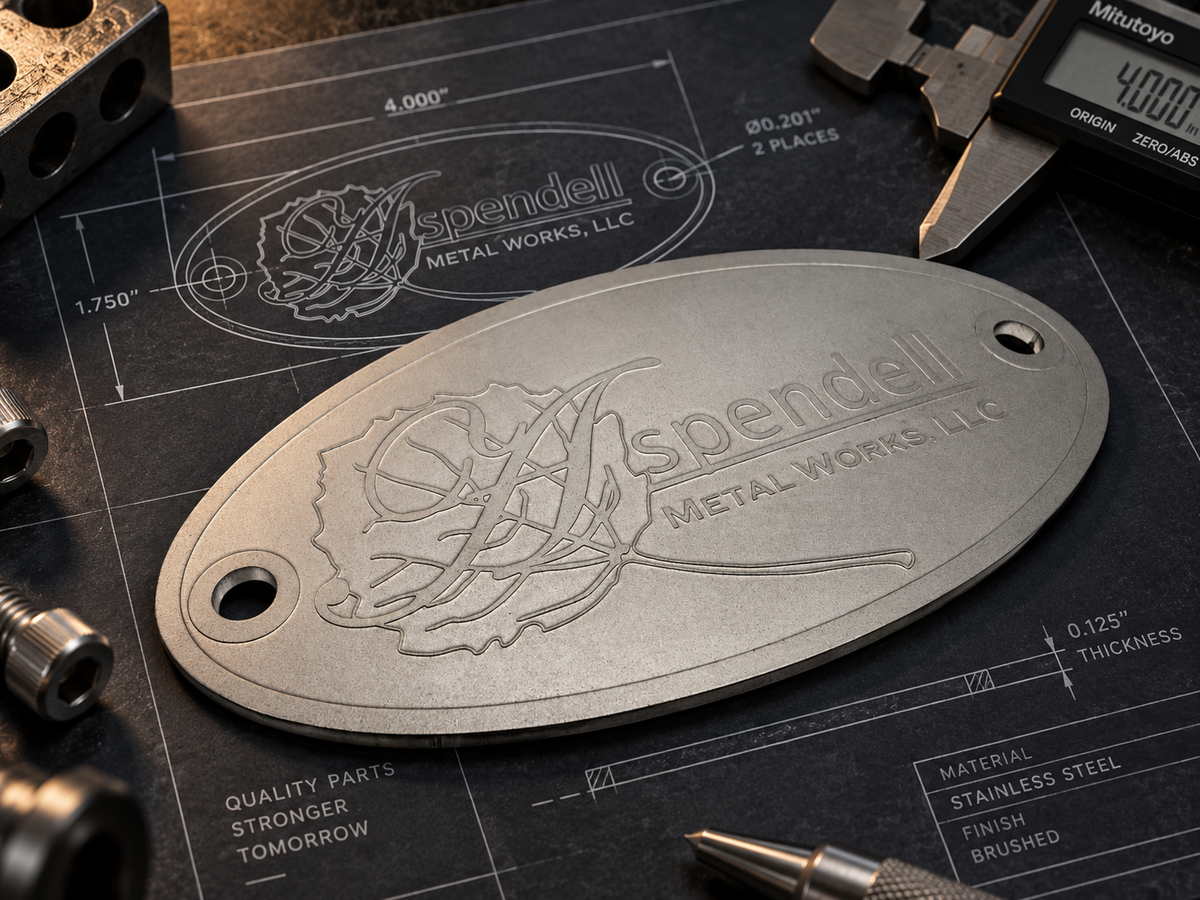

Industrial Equipment Nameplate
| Material | 0.125" stainless steel |
|---|---|
| Size | 4" x 1.75" |
| Graphics | Etched logo and border |
| Attachment | Mounting holes |
| Receiving surface | Equipment panel or enclosure |
| Environment | Indoor or outdoor use depending on application |
| Quantity | 500 initial / approximately 2,000 annually |
| Approval | Production drawing + first article sample |
A specification at this level gives engineering, sourcing, and production a common starting point. Details can still change during review, but the project is no longer being evaluated from assumptions.
